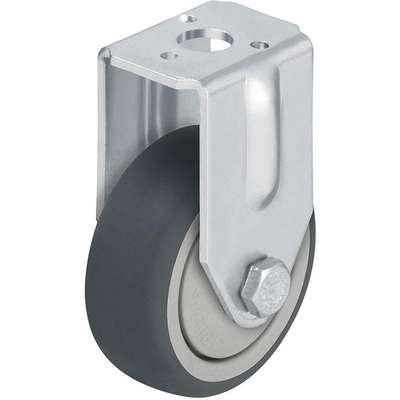

3" Bolt Hole Caster with 165 lb. Load Rating and Ball Caster Wheel Bearings

3" Bolt Hole Caster with 165 lb. Load Rating and Ball Caster Wheel Bearings

#914627-7 | Pkg Qty: 1

$14.54 pkg | $14.54 ea
Item Number 914627-7
Scanner Description Hollow Kingpin Rigid Caster,3
Inventory Status Drop Ship Item
Weight 0.47 lb
Brand APPROVED SUPPLIER

Technical Specifications

Bolt Hole Diameter
7/16 in.
Includes
Thread Guards
Brand
APPROVED SUPPLIER
Item
Bolt Hole Caster
Caster Brake Included
No
Load Rating
165 lb.
Caster Core Material
Polypropylene
Mfr. Part Number
BRA-TPA 75K-FK
Caster Group
Rigid Caster
Number of Wheels
1
Caster Load Rating Range
Light Duty
Overall Height
3-7/8 in.
Caster Raceway
Double Ball
Pack Quantity
1
Caster Stem Type
Hollow Kingpin
Replacement Wheel
Mfr. No. TPA 75/6K-FK
Caster Sub-Type
Rigid
Standards
DIN EN 12530
Caster Temperature Range Available
No
Stem Diameter
7/16 in. Bolt Hole
Caster Wheel Bearings
Ball
Stem Type
Hollow Kingpin
Caster Wheel/Tread Material
Thermoplastic Rubber
Wheel Bearings
Precision Ball
Core Color
Gray
Wheel Color
Gray
Core Material
Polypropylene
Wheel Diameter
3 in.
Features
Hollow
Wheel Material
Thermoplastic Rubber
Frame Finish
Zinc Plated
Wheel Width
1 in.

Product Description

Hollow Kingpin Casters

  • Double-ball swivel raceway 10.2mm bolt holes Nos. 22N011, 22N012, 22N013 and 22N014 have noise-absorbing rubber damping ring Insert a bolt or expanding adapter through the caster swivel head and into equipment. Installation of the connecting element may require temporary disassembly of the wheel depending on wheel dia. and length of bolt. Capacities greater than 240 lb. should be installed with a 1/2" threaded bolt (see Stem Hole Dia.). Lighter-duty casters can be assembled with expanding adapters.
Item Barcode
9146277
  Name Item Description
Grainger Dropship Grainger Dropship 22M990 Hollow Kingpin
UNSPSC CODES UNSPSC CODES 31162701
VMRS (ATA) CODES VMRS (ATA) CODES 053-007-003 Hollow Kingpin
