PARKER

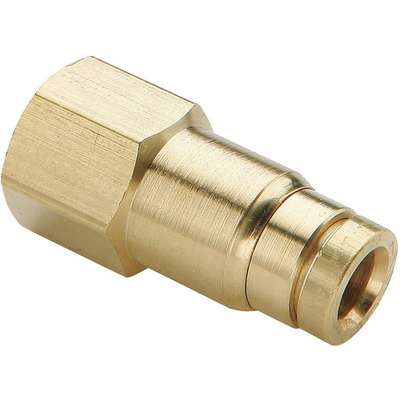

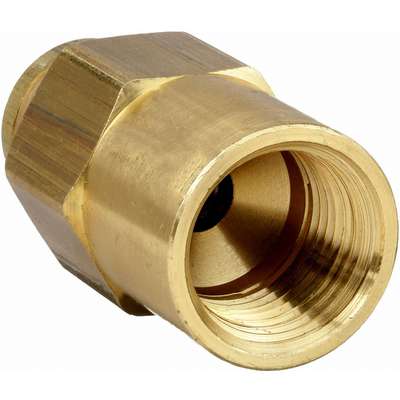

Female Connector: Brass, Push-to-Connect x FNPT, For 1/2 in Tube OD, 3/8 in Pipe Size
Hover over image to magnify
#914575-7 | Pkg Qty: 1
$27.40 pkg | $27.40 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
PARKER
Material
Brass
Brass DOT Push-to-Connect Fittings Type
Connectors
Mfr. Part Number
66PTC-8-6
Connection
Tube x FNPT
Package Quantity
1
Connection Type
Female
Pipe Thread
3/8 in.
DOT Approved
Yes
Shipping Weight
.26 lb.
Fitting Style
Push-To-Connect
Thread Size
3/8 in.
Fitting Type
Push-To-Connect
Tube Outside Diameter
1/2 in.
Hex Size
7/8 in.
General
Application
Air
Maximum Operating Pressure
250 psi
End Connection Type
Push-to-Connect, Threaded
Maximum Operating Temperature
200 Degrees F
Fitting Pipe Size
3/8 in
Minimum Operating Temperature
40 Degrees F
Fitting Shape
Adapter
Release Type
Button
Fitting Side A Connection Type
Push-to-Connect
Resistance Properties
Impact-Resistant
Fitting Side A Tube Outer Diameter
1/2 in
Specific Fitting Shape
Straight Adapter
Fitting Side B Connection Type
FNPT
Standards
DOT FMVSS 571.106, SAEJ2494
Fitting Side B Pipe Size
3/8 in
System of Measurement
Imperial
Product Description
Female Connector, Push to Connect, Length 1.68 in, Hex Size 7/8 in, Pipe Size 3/8 in, Tube Size 1/2 in, Thread Size 3/8 in, Pressure (PSI) 250, Connection Tube x FNPT, Temp. Range -40 Degrees to 200 Degrees F, Material Brass, Gasket Material Buna N, Standards DOT FMVSS 571.106, SAEJ2494
Expertly Selected Product Pairings
Compliance & Restrictions
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Item Barcode
Female Connector,1/2 x 3/8 In
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 11K672 | Female Connector,1/ |
 | UNSPSC CODES | 40183110 | |
 | VMRS (ATA) CODES | 053-008-004 | Female Connector,1/ |
