KRUEGER

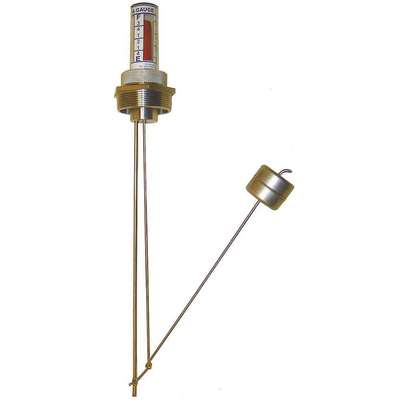

Krueger Level Gauge: For 43 in Container Dp, 1 1/2 in, Galvanized Steel / HDPE, 0 in Extension Lg

Hover over image to magnify
Therma Level Gauge,Tank  43" D,
Therma Level Gauge,Tank  43" D,

#914492 | Pkg Qty: 1

$55.03 pkg | $55.03 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
KRUEGER
Mfr. Part Number
H-1.5-43
Calibration Increments
1/8s of a Tank
Mfr. Warranty Length
1 yr.
Connection Size
1.5 in. NPT
Package Quantity
1
Float Diameter
1.125 In
Rivet Material
Brass
Float Material
HDPE Plastic
Shipping Weight
.9 lb.
Gasket Material
Duro Nitrile
Tank Depth
43 in.
Item
Level Gauge
General
Assembly Nut Material
HDPE
Graduation Marks
Empty; Full; 1/8 Increments
Bushing Material
Aluminum
Increment of Variation
Primary 1/4, Secondary 1/8
Calibration Unit Increments
1/8s of a Tank
Manufacturer Warranty Length
1 yr
Calibration Unit Material
Plastic
Maximum Operating Pressure
70 psi
Container Compatibility
No Exact Capacity No Specific Style
Maximum Temperature
120 °F
Extension Length
0 in
Minimum Temperature
-20 °F
Float Dia.
1 1/8 in
Pipe Size
1 1/2 in
Float Rod Material
Galvanized Steel
Rod Material
Galvanized Steel
For Container Capacity
No Exact Capacity
Rod/Float Material
Galvanized Steel / HDPE
For Container Depth
43 in
Temp. Range
-20° to 120°F
For Container Type
No Specific Style
Thread Gender
Male
For Liquid Type
Diesel, Gasoline, Hydraulic Oil
Units of Measurement
Inches

Product Description

Tank Gauges Read Full/Empty/8ths of a tank. H Series is primarily for above-ground storage tanks. Stainless steel units have all-stainless steel wetted materials for outstanding compatibility with aggressive chemicals. PH Series are all-plastic for maximum compatibility with aggressive chemicals.
