SQUARE D

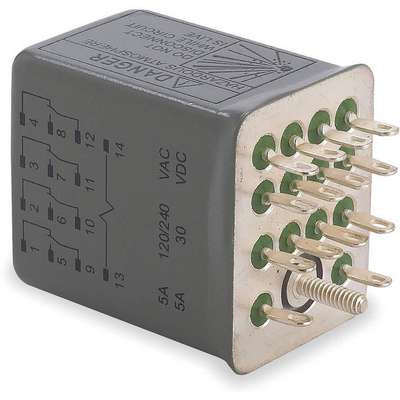

Square D 120VAC Coil Volts, Hermetically Sealed Relay, 5A @ 120/240VAC/5A @ 28VDC Contact Rating, Square

Hover over image to magnify
Relay,14Pin,4PDT,5A,120VAC
PI_Asset_1364305
Relay,14Pin,4PDT,5A,120VAC
PI_Asset_1364305
Square D 120VAC Coil Volts, Hermetically Sealed Relay, 5A @ 120/240VAC/5A @ 28VDC Contact Rating, Square Video

#914444-3 | Pkg Qty: 1

$84.22 pkg | $84.22 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
AC Contact Rating
5 A @ 120/240 V
Mfr. Part Number
8501RS34V20
Base Type
Square
Mounting
Plug In
Body Depth
1.16 in.
Number of Pins
14
Body Height
1.28 in.
Number of Poles
4
Body Width
0.91 in.
Overall Height
1.53 in.
Brand
SQUARE D
Package Quantity
1
Coil VA Rating
1.2
Pins
14
Coil Volts
120 VAC
Plug-In Relay Style
Hermetically Sealed
Contact Amp Rating
1A
Push To Test
No
Contact Form
4PDT
Relay Power Consumption
1.2 VA
Contact Material
Silver Cadmium Oxide
Resistive Contact Amp Rating
5A @ 120/240VAC, 5A @ 30VDC
Contact Rating
5 A @ 120/240 VAC, 5 A @ 30 VDC
Shipping Weight
.1 lb.
DC Contact Rating
5 A @ 28 V
Socket
Mfr. No. 8501NR45
Inductive Contact Amp Rating
1A
Socket Code
G
Input Power Consumption
1.2 VA
Status Indicator
No
Item
Hermetically Sealed Relay
General
AC Contact Rating - Relay
5A @ 120/240V
Features
Hermetically Sealed, Class 1 Div. 2
Base Type - Plug In Relay
Square
Mounting - Relay
Plug In
Body Depth - Relay
1.16 in
Number of Pins - Relay
14
Body Height - Relay
1.28 in
Overall Height - Relay
1.53 in
Body Width - Relay
0.91 in
Power Consumption - Relay
1.2 VA
Contact Form - Relay
4PDT
Socket Code - Relay
G
DC Contact Rating - Relay
5A @ 28V
Standards
CSA Certified

Product Description

Hermetically Sealed Relay, Coil Volts 120V AC, AC Contact Rating - Relay 5A @ 120/240V, DC Contact Rating - Relay 5A @ 28V, Base Type - Plug In Relay Square, Number of Pins - Relay 14, Contact Form - Relay 4PDT, Mounting - Relay Plug In, Socket Code - Relay G, Power Consumption - Relay 1.2 VA, Contact Material Silver Cadmium Oxide, Status Indicator No, Push To Test No
