SQUARE D

Square D 24VDC Coil Volts, Hermetically Sealed Relay, 5A @ 120/240VAC/5A @ 28VDC Contact Rating, Square

Hover over image to magnify

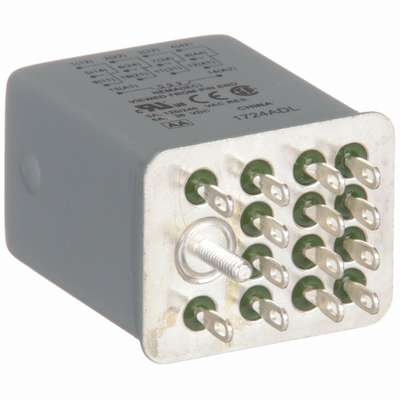

Relay,14Pin,4PDT,5A,24VDC
PI_Asset_1499136
Relay,14Pin,4PDT,5A,24VDC
PI_Asset_1499136
Square D 24VDC Coil Volts, Hermetically Sealed Relay, 5A @ 120/240VAC/5A @ 28VDC Contact Rating, Square Video

#914444-2 | Pkg Qty: 1

$84.22 pkg | $84.22 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
AC Contact Rating
5 A @ 120/240 V
Item
Hermetically Sealed Relay
Base Type
Square
Mfr. Part Number
8501RSD34V53
Body Depth
1.16 in.
Mounting
Plug In
Body Height
1.28 in.
Number of Pins
14
Body Width
0.91 in.
Number of Poles
4
Brand
SQUARE D
Overall Height
1.53 in.
Coil VA Rating
0.9
Package Quantity
1
Coil Volts
24 VDC
Pins
14
Contact Amp Rating
1A
Plug-In Relay Style
Hermetically Sealed
Contact Form
4PDT
Push To Test
No
Contact Material
Silver Cadmium Oxide
Relay Power Consumption
0.9 W
Contact Rating
5 A @ 120/240 VAC, 5 A @ 30 VDC
Resistive Contact Amp Rating
5A @ 120/240VAC, 5A @ 30VDC
DC Contact Rating
5 A @ 28 V
Shipping Weight
.17 lb.
HP @ 120 V
Not Rated
Socket
Mfr. No. 8501NR45
HP @ 240 V
Not Rated
Socket Code
G
Inductive Contact Amp Rating
1A
Status Indicator
No
Input Power Consumption
0.9 W
General
AC Contact Rating - Relay
5A @ 120/240V
Features
Class 1 Div. 2, Hermetically Sealed
Base Type - Plug In Relay
Square
Mounting - Relay
Plug In
Body Depth - Relay
1.16 in
Number of Pins - Relay
14
Body Height - Relay
1.28 in
Overall Height - Relay
1.53 in
Body Width - Relay
0.91 in
Power Consumption - Relay
0.9 W
Contact Form - Relay
4PDT
Socket Code - Relay
G
DC Contact Rating - Relay
5A @ 28V
Standards
CE Marked, CSA Certified

Product Description

Offers a one-stop solution for your power management system. Features plug-in switching capabilities from 10mA to 12A. Also designed with ejector clips for easy removal from crowded DIN rails. Dust-tight construction keeps harmful materials away.
