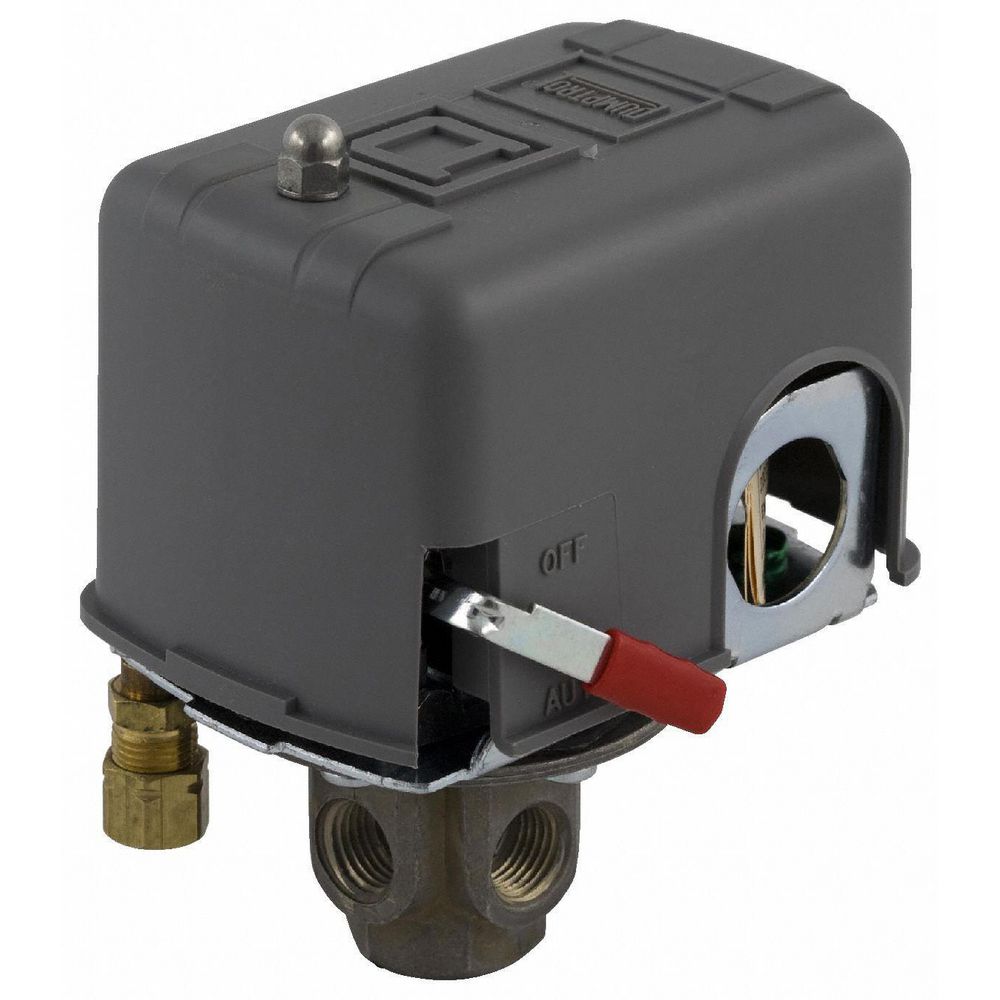

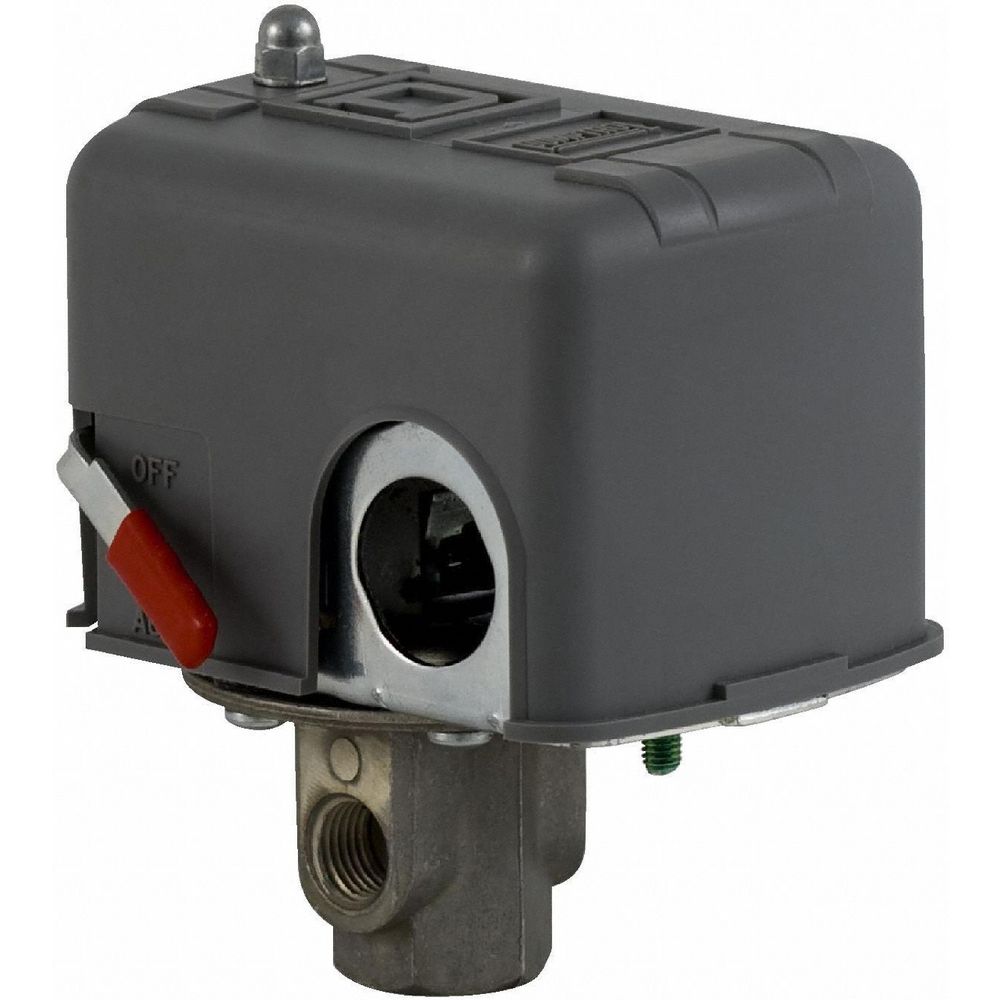

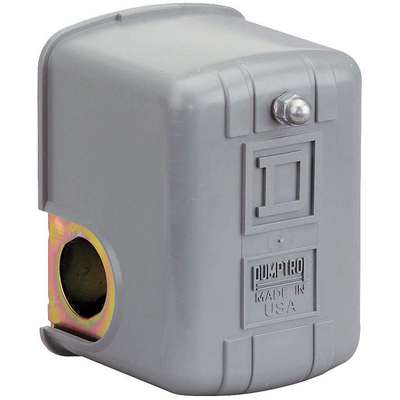

Square D Air Compressor Pressure Switch; Range: 20 to 100 psi, Port Type: (4) Port, 1/4" FNPS
Hover over image to magnify
#914391-1 | Pkg Qty: 1
$69.85 pkg
| $69.85 ea
Technical Specifications
Key Specifications
AC Contact Rating
10 A @ 575 V
Manual Switch Action
Auto/Off
Action
Standard
Mfr. Part Number
9013FHG4J27M1X
Actuation Type
Diaphragm
NEMA Rating
1
Amperage
10 A
Number of Ports
4
Brand
SQUARE D
Package Quantity
1
Burst Pressure
220 psi
Phase
Single/Three
Contact Form
DPST
Port Type
4-Port 1/4 in. FNPS
Contact Type
DPST
Pressure Range
20 to 100
DC Contact Rating
1/4 HP @ 115 VDC, 1/4 HP At 230 VDC
Pressure Switch Action
Standard
Differential
20 PSI
Pressure Switch Application
Air Compressor
Differential Pressure
20
Pressure Switch Differential
20 PSI
Enclosure
NEMA 1
Pressure Switch Electrical Contact Form
DPST
Factory On/Off Setting
80/100 psi
Pressure Switch Factory On/Off Setting
80/100 PSI
HP @ 1 Phase - 120 V
2002-01-01
Pressure Switch Port Type
(4) Port, 1/4 in. FNPS
HP @ 1 Phase - 230 V
2
Pressure Switch Range
20 to 100 psi
HP @ 1 Phase - 240 V
2
Pressure Switch Unloader
1/4 in. Compression
HP @ 3 Phase - 230 V
3
Range
20 to 100 PSI
HP @ 3 Phase - 240 V
3
Series
9013Fhg
HP @ 3 Phase - 460 V
1
Shipping Weight
1 lb.
HP @ 3 Phase - 480 V
1
Temperature Range
-22 deg. F to 257 deg. F
IP Rating
54
Type
Air Compressor
Item
Pressure Switch
Unloader
1/4 in. Compression
General
Application
Air Compressor
HP @ 3 Phase - 460V
1
HP @ 1 Phase - 120V
1 1/2 hp
HP @ 3 Phase - 480V
1 hp
HP @ 1 Phase - 230V
2
Includes
Maintained Manual Cut-Out Lever, 2-Way Pressure Release Valve
HP @ 1 Phase - 240V
2 hp
Special Features
Nitrile (Buna-N) Diaphragm
HP @ 3 Phase - 230V
3
Standards
UL 508, NEC Article 430-84, ANSI /NSF Standard 61, FDA 21CFR.2600, CSA Certified
HP @ 3 Phase - 240V
3 hp
Product Description
This pressure switch features a fixed differential, an actuated diaphragm, and contacts designed to open with rising pressure. It is designed to control electrically driven air compressors and pumps.
