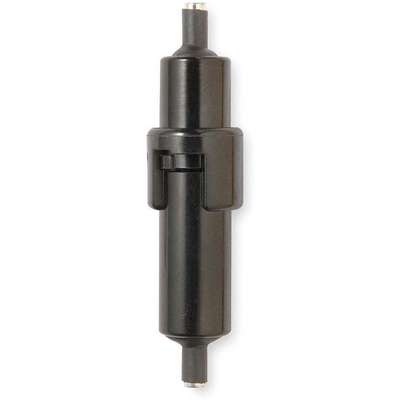

1-Pole Glass and Ceramic Fuse Holder, AC: 250VAC, DC: 125VDC, 1 to 20A, Series HFA

Hover over image to magnify
Holder,Fuse,20 Amp,1p
Holder,Fuse,20 Amp,1p

#914363-1 | Pkg Qty: 1

$52.00 pkg | $52.00 ea
Item Number 914363-1
Scanner Description Holder,Fuse,20 Amp,1p
Inventory Status Drop Ship Item
Weight 0.03 lb
Brand BUSSMANN

Technical Specifications

AC Voltage Rating
250 VAC
Fuse Dimensions
1/4 in.L x 1-1/4 in.H x 1/4 in.W
Amp Range of Fuse Block or Holder
1 to 20A
Fuse Length
1.25 in.
Amperage Range
0-20 A
Fuse Size Diameter
2022-01-04
Amps AC
20
Fuse Size Length
2004-01-01
Blown Fuse Indicator
No
Fuse Type
Glass and Ceramic
Body Height
1/4 in.
Fuse UL Class
Not Class Rated
Body Length
1/4 in.
Height
1/4 in.
Body Material
Phenolic
Indicating / Nonindicating
Nonindicating
Body Width
1/4 in.
Item
Fuse Holder
Brand
BUSSMANN
Length
1/4 in.
Color Family
Black
Maximum Amps
20
Connector Type
Crimp
Maximum Voltage
250 V
DC Voltage Rating
125 VDC
Mfr. Part Number
HFA-R
Diameter
1/4 in.
Mounting Style
Inline
Features
Watertight
Number of Poles
1
For Fuse Series
ABC, AGC, AGX, MDA, MDL, MDM, MDQ, TFF, TFL, TGH
Pack Quantity
1
For Fuse Size
1-1/4 in. L x 1/4 in. dia
Series
Hfa
Fuse Block Design
Not Applicable
Standards
UL-R
Fuse Block or Fuse Holder Type
Fuse Holder
Voltage Rating
250 VAC/125 VDC
Fuse Block or Holder AC Voltage Rating
250 VAC
Width
1/4 in.
Fuse Block or Holder DC Voltage Rating
125 VDC
Wire Size
16 to 12 AWG
Fuse Diameter
0.25 in.

Product Description

These in-line fuse holders are compatible with 1/4" dia. glass and ceramic fuses for overcurrent protection in electronics equipment, appliances, and lighting circuits. They're used with glass fuses for protecting low-current circuits or ceramic fuses for protecting high-current circuits.

In-line fuse holders are wire-mounted holders that connect anywhere along a circuit to protect specific lines. They allow these lines to be isolated in the event of a fault so that the rest of the wiring system won't be affected. They have a receptacle that encloses a fuse and pigtail wires or terminals that extend from each end of the receptacle for connecting to a circuit. These fuse holders are commonly used on automotive wiring and other applications where space is limited or fuse box would be impractical.
