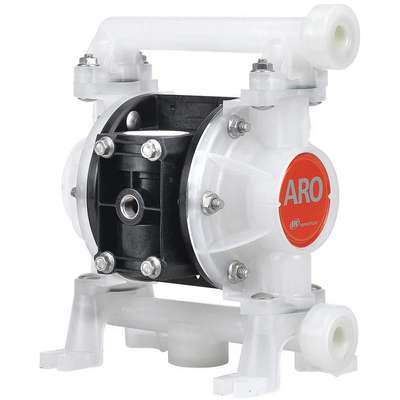

Polypropylene Santoprene Single Double Diaphragm Pump, 10.6 gpm, 100 psi

Hover over image to magnify
Double Diaphragm Pump,3/8 In.,
Double Diaphragm Pump,3/8 In.,

#914319-1 | Pkg Qty: 1

$718.87 pkg | $718.87 ea
Item Number 914319-1
Scanner Description Double Diaphragm Pump,3/8 In.,
Inventory Status Drop Ship Item
Weight 5.4 lb
Brand ARO

Technical Specifications

Agency Compliance
CE, RoHS, REACH
Manifold Connection
Single
Air Inlet Size
1/4 in. FNPT
Manufacturers Warranty Length
5 yr.
Ball Material
Santoprene®
Maximum Diameter Solids
1/16 in.
Body Material
Polypropylene
Maximum Flow
10.6 gpm
Brand
ARO
Maximum Flow (GPM)
10.6
Check Seat Material
Polypropylene
Maximum Operating PSI
100
Connection Style
NPT
Maximum Operating Pressure
100 psi
Diaphragm Design
Santoprene®
Maximum Temperature (Deg. F)
150°F
Diaphragm Material
Santoprene®
Mfr. Part Number
PD03P-APS-PAA
Flow
4.5 gpm
Operation Type
Air Operated
Height
9-7/32 in.
Pack Quantity
1
Housing Material
Polypropylene
Pump Operation Type
Air Operated
Inlet/Outlet
3/8 in.
Self-Priming Dry
10 ft.
Inlet/Outlet Size
3/8 in.
Self-Priming Wet
15 ft.
Item
Double Diaphragm Pump
Valve Type
Ball
Length
7-29/32 in.
Width
5-23/32 in.

Product Description

Offering high volume delivery even at low air pressure this ARO® double diaphragm pump features maximized flow rates with minimal pulsation and air consumption. This air-operated, double-diaphragm model utilizes a pressure differential in the air chambers to alternately create suction and a positive fluid pressure in the fluid chambers, and ball checks to help insure a positive fluid flow. Pump can provide reliable operation with innovative, lube-free differential valve both on the major air valve and Simulshift™ pilot valve for worry-free operation.
