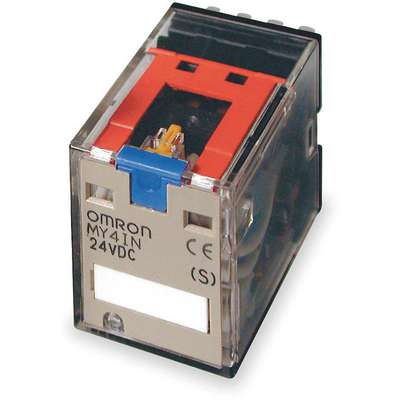

Omron 24VDC Coil Volts, General Purpose Relay, 5A @ 240VAC/5A @ 28VDC Contact Rating, Square

Hover over image to magnify
Push To Test Relay,14Pin,4PDT,
PI_Asset_1368714

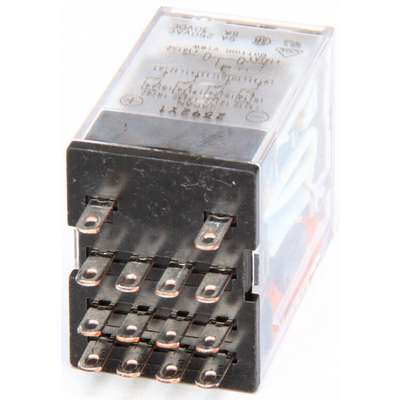

Push To Test Relay,14Pin,4PDT,
PI_Asset_1368714
Omron 24VDC Coil Volts, General Purpose Relay, 5A @ 240VAC/5A @ 28VDC Contact Rating, Square Video

#914227-9 | Pkg Qty: 1

$12.95 pkg | $12.95 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
AC Contact Rating
5 A @ 240 V
Mounting
Plug In
Base Type
Square
Number of Pins
14
Body Depth
1.1 in.
Number of Poles
4
Body Height
1.42 in.
Overall Height
1.67 in.
Body Width
0.85 in.
Package Quantity
1
Brand
OMRON
Pins
14
Coil VA Rating
0.9
Plug-In Relay Style
General Purpose
Coil Volts
24 VDC
Push To Test
Lockable
Contact Amp Rating
5
Relay Power Consumption
0.9 W
Contact Form
4PDT
Resistive Contact Amp Rating
5
Contact Material
Silver Alloy
Response Time
20 msec
Contact Rating
5 A @ 250 VAC/30 VDC
Shipping Weight
.05 lb.
DC Contact Rating
5 A @ 28 V
Socket
Mfr. No. PYF14AE
Inductive Contact Amp Rating
5
Socket Code
G
Input Power Consumption
0.9 W
Status Indicator
LED
Item
General Purpose Relay
Type
LED, Push to Test
Mfr. Part Number
MY4IN-DC24(S)
General
AC Contact Rating - Relay
5A @ 240V
HP @ 120V
1/6 hp
Base Type - Plug In Relay
Square
HP @ 240V
1/6 hp
Body Depth - Relay
1.1 in
Mounting - Relay
Plug In
Body Height - Relay
1.42 in
Number of Pins - Relay
14
Body Width - Relay
0.85 in
Overall Height - Relay
1.67 in
Contact Form - Relay
4PDT
Power Consumption - Relay
0.9 W
DC Contact Rating - Relay
5A @ 28V
Socket Code - Relay
G
Features
Cadmium Free Contacts

Product Description

General Purpose Relay, Coil Volts 24V DC, AC Contact Rating - Relay 5A @ 240V, DC Contact Rating - Relay 5A @ 28V, Base Type - Plug In Relay Square, Number of Pins - Relay 14, Contact Form - Relay 4PDT, Mounting - Relay Plug In, Socket Code - Relay G, Power Consumption - Relay 0.9 W, Contact Material Silver Alloy, Status Indicator LED, Push To Test Lockable
