DAYTON

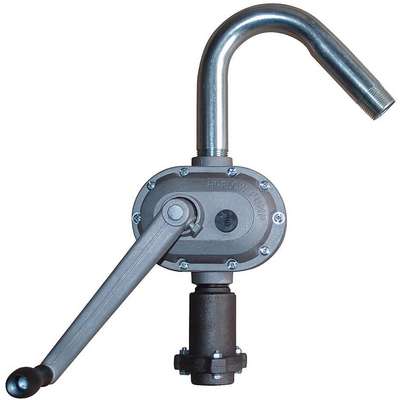

Hand Operated Drum Pump, Rotary, Hand Pump Only, For Container Type Bucket, Drum, Pail

Hover over image to magnify
Pump,Rotary,27 Gpm
Pump,Rotary,27 Gpm

#914195 | Pkg Qty: 1

$220.08 pkg | $220.08 ea

Drop Ship Item

Shipping to 60045

Required Items

Items below are required. They are not included and need to be ordered separately.
#911587-8
Suction Tube,1 In Mnpt
Suction Tube,1 In Mnpt
Pkg Qty: 1
$16.82 pkg
Suction Tube,1 In Mnpt
#911587-8
Suction Tube,1 In Mnpt
Pkg Qty: 1
$16.82 pkg
Suction Tube,1 In Mnpt
#911587-8
Suction Tube,1 In Mnpt
Pkg Qty: 1
$16.82 pkg

Technical Specifications

Key Specifications
Action Type
Rotary
Maximum Viscosity
5000 SSU
Adapter Material
Aluminum
Metered
No
Adapter Type
2" NPT Bung
Mfr. Part Number
4HA35
Brand
DAYTON
Outlet Size
1" OD
Discharge Tube Length
15"
Overall Length
11-1/2 in.
Discharge Tube Outlet ID Size
1-1/32"
Pack Quantity
1
Discharge Tube Outlet Outside Diameter
1-1/4"
Power Source
Hand Operated
Discharge Tubing Material
Steel
Pump Body Material
Aluminum
For Use On
15, 30, 55 gal. Drums
RPM
120
GPM
27 GPM @ 120 RPM
Seal
Buna
Hand Operated Pump Action Type
Hand Operated Rotary Pumps
Seal Material
Buna-N
Housing Finish
Sand Blasted
Self-Priming
Yes
Housing Material
Aluminum
Shipping Weight
13 lb.
Inlet Size
1" FNPT
Type
Rotary Action
Item
Hand Operated Drum Pump
Wetted Materials
Cast Aluminum, Cast Iron, Buna-N, Polyethylene, Steel
Maximum Liquid Temperature
140°F
pH Range

General
Application
Antifreeze
For Use With
Antifreeze
Compatible Chemicals
Automatic Transmission Fluid, Deionized Water, Diesel Fuel, Ethyl (Ethanol), Gasoline, Kerosene
Housing Material - Pumps
Aluminum
Discharge Tube Outlet ID
1 1/32 in
Includes Bung Adapter
Yes
Discharge Tube Outlet OD
1 1/4 in
Max. Flow Rate
27 gpm @ 120 strokes
Features
High Flow
Max. Fluid Temp.
140 Degrees F
For Container Size
5 gal, 15 gal, 30 gal, 55 gal
Not Recommended Chemicals
DEF, Fresh Water, Methyl Ethyl Ketone (MEK), Salt Water, Sodium Hypochlorite/Bleach (to 20%)
For Container Type
Bucket, Drum, Pail
Pump Package Type
Hand Pump Only
For Media Type
Automatic Transmission Fluid, Diesel Fuel, Ethanol, Gasoline, Kerosene, Water

Product Description

Automotive fluids, fuel, and oil hand drum pumps are designed for dispensing and transferring small volumes of fluids such as diesel fuel, coolant, washer fluid, power steering fluid, transmission fluid, and engine oil. These pumps are commonly used during automotive service and fleet maintenance to drain fuel tanks and remove spent fluids from vehicles and engine-powered machinery.
