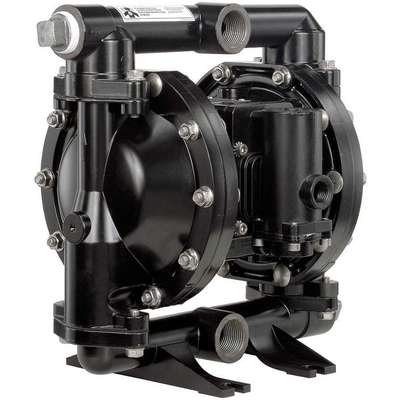

Aluminum Santoprene® Multiport Double Diaphragm Pump, 52 gpm, 120 psi

Aluminum Santoprene® Multiport Double Diaphragm Pump, 52 gpm, 120 psi

#914190-4 | Pkg Qty: 1

$1,416.24 pkg | $1,416.24 ea
Item Number 914190-4
Scanner Description Diaphragm Pump,Air Operated,
Inventory Status Drop Ship Item
Weight 29.29 lb
Brand ARO

Technical Specifications

Agency Compliance
ATEX, CE, RoHS, REACH
Manifold Connection
Multiport
Air Inlet Size
1/4 in. FNPT
Manufacturers Warranty Length
5 yr.
Ball Material
Santoprene®
Maximum Diameter Solids
1/8 in.
Body Material
Aluminum
Maximum Flow
52 gpm
Brand
ARO
Maximum Flow (GPM)
52
Check Seat Material
Santoprene®
Maximum Operating PSI
120
Connection Style
NPT
Maximum Operating Pressure
120 psi
Diaphragm Design
Santoprene®
Maximum Temperature (Deg. F)
200°F
Diaphragm Material
Santoprene®
Mfr. Part Number
PD10A-AAP-AAA
Flow
52.2 gpm
Operation Type
Air Operated
Height
12-7/16 in.
Pack Quantity
1
Housing Material
Aluminum
Pump Operation Type
Air Operated
Inlet/Outlet
1 in. NPT
Self-Priming Dry
19 ft.
Inlet/Outlet Size
1 in.
Valve Type
Ball
Item
Double Diaphragm Pump
Width
14 in.
Length
12-5/16 in.

Product Description

Air-Operated Diaphragm Pumps EXP Series

  • Provide stall-free, ice-free operation. Pumps feature Quick Dump exhaust valves that divert cold exhaust air from ice-prone components to help prevent freezing. Unbalanced air valve design helps avoid stalling issues associated with other pumps. Suitable for wastewater treatment, recirculating plating solutions, bulk transfer, and chemical formulation applications. Flanges are standard ANSI 150# flanges. Flange kits are not included. 5-yr. manufacturer’s warranty.
Item Barcode
9141904
  Name Item Description
Grainger Dropship Grainger Dropship 6CCK6 Diaphragm Pump,Air
UNSPSC CODES UNSPSC CODES 40151548
VMRS (ATA) CODES VMRS (ATA) CODES 053-008-004 Diaphragm Pump,Air
