DAYTON

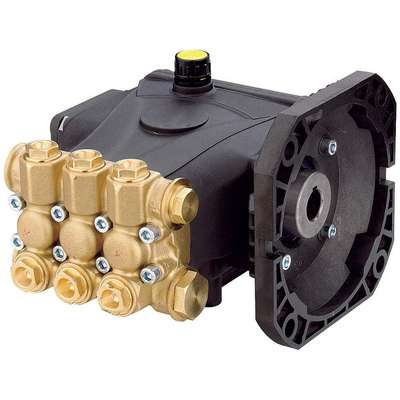

Pressure Plunger Pump: Direct-Mount, 3 gpm Flow Capacity (GPM), 3,450 RPM RPM, 1/2 F

Hover over image to magnify
Pressure Washer Pump,3 Gpm, 1/
Pressure Washer Pump,3 Gpm, 1/

#914158-6 | Pkg Qty: 1

$654.53 pkg | $654.53 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Bearings
Needle/Ball
Item
Pressure Plunger Pump
Brand
DAYTON
Lubrication
Splash
Connecting Rod
Aluminum
Manifold Material
Forged Brass
Crankcase
Precision Die Cast
Maximum Fluid Temperature (Deg. F)
140
Crankshaft
Hardened Steel
Maximum Inlet Pressure
50
Discharge Port
3/8 F
Mfr. Part Number
4WXW5
Driver Type
Electric Motor
Pack Quantity
1
Flow Capacity
3
Plunger
Ceramic
HP Required @ 1000 PSI
2.1
Pump Head
Forged Brass
HP Required @ 1500 PSI
3.1
RPM
3450 RPM
HP Required @ 2000 PSI
4.1
Seal
Cotton Duct, Buna N Chevron and Lip Seal Packing
HP Required @ 2500 PSI
5.1
Shipping Weight
13.8 lb.
HP Required @ 500 PSI
1
Type
Direct-Mount
Inlet Port
1/2 F
General
Application
High Pressure Water Applications, including Car Wash, Pressure Wash, Sewer Jetting and Cooling Misting
Max. Fluid Temp. (F)
140
Discharge Pressure (PSI)
2,500 psi
Max. Inlet Pressure (PSI)
50 psi
Flow Capacity (GPM)
3 gpm
Shaft Dia.
5/8 in

Product Description

Dayton Plunger Pump is designed for a wide variety of high pressure washing applications. Constructed with die-cast bodies, its internal components include special thick solid plungers for long life and durability. Precision cast cooling fins are anodized for maximum heat dissipation. The positive alignment and centering in relation to the crankcase assures that the oversized needle bearings on the drive side, and ball on the non-drive side together with the precision supports. Valve cages of special designed Ultra-Form provide positive seating and extended life. Ball bearings on both sides of solid shaft drive pumps. One-piece connecting rods are special alloy aluminum, oversized for strength and load disbursement.
