DAYTON

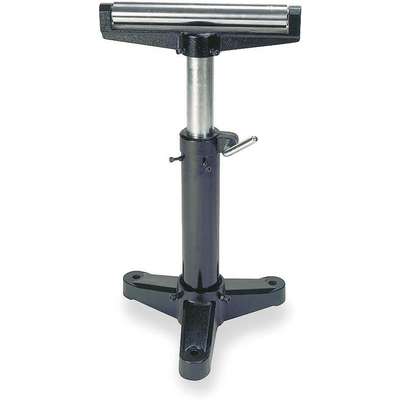

Dayton Material Support Stand, Horizontal Roller, 2,000 lb Stand Load Capacity, 14" Roller Width

Hover over image to magnify
Roller Support Stand.16-1/4 x
Roller Support Stand.16-1/4 x

#914004-5 | Pkg Qty: 1

$153.97 pkg | $153.97 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
DAYTON
Raised Height
38 in.
Color Family
Gray
Roller Width
14 in.
Height Range
23 - 37 in.
Shipping Weight
49.7 lb.
Item
Material Support Stand
Stand Load Capacity
2000 lb.
Load Capacity
2000 lb.
Stand Material
Steel
Lowered Height
23-1/4 in.
Stand Mobility
Portable
Material
Steel
Support Stand/Table Type
Horizontal Roller
Maximum Height
37 in.
Type
Horizontal Head
Mfr. Part Number
6A819
Use With
Used to support bar stock, sheet metal, beams, or other flat material. Single 2 x 14 in. roller protrudes above the head casting, allowing use with material wider than the roller.
Minimum Height
23 in.
Width
16-1/4 in.
Overall Width
16-1/4 in.
Working Load Limit
2000 lb.
Package Quantity
1
General
Capacity (Lb.)
2000
Max. Height
37 in
For Use With
Bar Stock, Sheet Metal, Beams, Other Flat Material
Min. Height
23 in
Height Range (In.)
23 to 38

Product Description

Flat roller stands (also known as pedestal rollers) each have a single straight roller and are typically used for feeding flat-bottomed sheets, planks, and bars into or out of machinery in machine shops, woodshops, and other fabrication facilities. They can be used with items that are wider than the roller width, and they are also a good choice for conveying items that would fall into the spaces between ball transfers on a ball transfer stand. The rollers only allow items to move forward and backward on the stand. The stands' height can be adjusted to help ensure the materials are properly aligned for the intended purpose.

Material support and transfer stands and tables have integrated conveyor rollers or ball transfers that support, position, and feed longer materials into machines such as band saws and presses. Their height can be adjusted to help ensure the materials are precisely aligned for the intended purpose. These stands and tables are commonly used in machine shops, woodshops, and other fabrication facilities.

Expertly Selected Product Pairings

Horizontal Band Saw,5 X 6,1/3
$1,238.49 pkg | $1,238.49 ea
Item: 911786-5 | Pkg Qty: 1

Compliance & Restrictions

California Proposition 65 Icon
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Item Barcode
9140045
Roller Support Stand.16-1/4 x
 NameItemDescription
Grainger DropshipGrainger Dropship6A819Roller Support
UNSPSC CODESUNSPSC CODES24102006
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Roller Support

For more product information by email, click here
