DAYTON

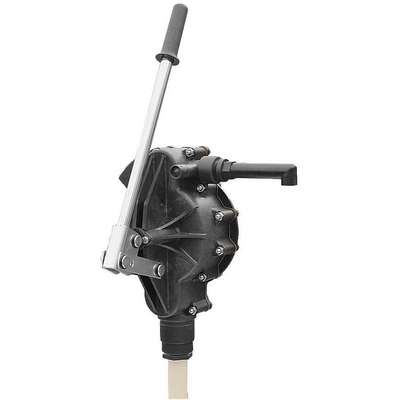

Polypropylene Hand Operated Drum Pump, Piston, Ounces per Stroke: 22 oz.
Hover over image to magnify
#913995 | Pkg Qty: 1
$240.04 pkg | $240.04 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Action Type
Piston
Mfr. Warranty Length
1 yr.
Adapter Material
Polypropylene
Mounts On
55 Gallon Drum
Adapter Type
2" Bung
Ounces per Stroke
22 oz.
Brand
DAYTON
Outlet Size
3/4" NPT
Discharge Tube Outlet Outside Diameter
3/4"
Overall Length
8-7/8 in.
Discharge Tubing Material
Polypropylene
Pack Quantity
1
For Use On
55 gal. Drums
Piston
PTFE
Gasket Material
Cork, Nitrile
Piston Material
PTFE
Hand Operated Pump Action Type
Hand Operated Piston Pumps
Power Source
Hand Operated
Height
59 in.
Pump Body Material
Polypropylene
Housing Material
Polypropylene
Self-Priming
Yes
Inlet Size
1"
Shipping Weight
7.9 lb.
Item
Hand Operated Drum Pump
Suction Tube Length
40 in.
Maximum Liquid Temperature
130°F
Suction Tube Outlet Outside Diameter
3/4 in.
Maximum Viscosity
1000 SSU
Type
Piston Action
Metered
No
Wetted Materials
Cork, Nitrile, Polypropylene, PTFE, Stainless Steel, Viton
Mfr. Part Number
5UWH4
pH Range
4 to 11
General
Application
Liquids Within a pH Range of 4 to 11. Includes Many Organic Acids, Alcohols and Water Soluble Inorganic Chemicals
Includes Bung Adapter
Yes
Discharge Tube Outlet OD
3/4 in
Includes Discharge Hose
No
For Container Size
55 gal
Includes Nozzle
No
For Container Type
Drum
Includes Spout
Yes
For Media Type
General Purpose
Includes Suction Tube
Yes
For Use With
Liquids Within a pH Range of 4 to 11. Includes Many Organic Acids, Alcohols and Water Soluble Inorganic Chemicals
Max. Flow Rate
22 oz per stroke
Height Above Container
18 in
Max. Fluid Temp.
130 Degrees F
Housing Material - Pumps
Polypropylene
Pump Package Type
Basic Pump with Spout
Includes
Manual
Suction Tube OD
3/4 in
Product Description
General purpose hand drum pumps are designed for water transfer and pumping fluids other than food, fuels, or corrosives. They're used to dispense and transfer small volumes of fluid in general manufacturing and processing applications where a specialized pump isn't needed.
Compliance & Restrictions
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Item Barcode
Drum Pump, Polyproplene,22 Oz
