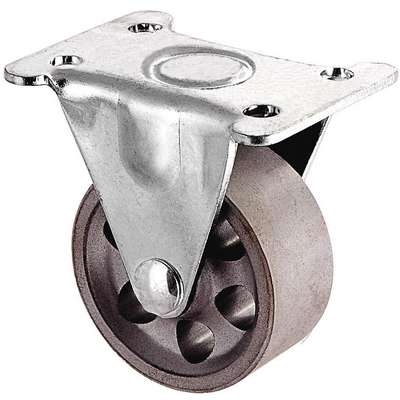

Standard Plate Caster, Rigid, Iron, 125 lb., 2" Wheel Dia.

Hover over image to magnify
Rigid Plate Caster,125 Lb,2 In
PI_Asset_947821
Rigid Plate Caster,125 Lb,2 In
PI_Asset_947821

#913987 | Pkg Qty: 1

$6.10 pkg | $6.10 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
APPROVED SUPPLIER
Load Rating
125 lb.
Caster Brake Included
No
Mfr. Part Number
1UKX7
Caster Brake Type
No Brake Included
Mounting Bolt Diameter
1/4 in.
Caster Core Material
Cast Iron
Mounting Height
2-11/16 in.
Caster Load Rating Range
Light Duty
Non-Marking
Yes
Caster Plate Hole Pattern
D
Number of Mounting Holes
4
Caster Plate Size
1-1/2 in. x 2-11/16 in.
Number of Wheels
1
Caster Swivel Lock Type
No Lock Included
Outside Bolt Hole Spacing
31/32 in. x 1-7/8 in.
Caster Wheel Bearings
Plain
Package Quantity
1
Caster Wheel Shape
Standard
Plate Caster Sub-Type
Rigid
Caster Wheel/Tread Material
Iron
Shipping Weight
.57 lb.
Core Color
Gray
Swivel Construction
Kingpinless
Frame Finish
Zinc Plated
Wheel Color
Gray
Frame Material
Steel
Wheel Diameter
2 in.
Inside Bolt Hole Spacing
31/32 in. x 1-7/8 in.
Wheel Width
1 in.
Item
Standard Plate Caster
Wheel/Tread Hardness Rating
Extra Hard
General
Caster Frame Material
Steel
Mounting Plate Size (Bolt Hole Pattern)
1 1/2 in x 2 11/16 in (D)
Caster Plate Thickness
5/64"
Swivel Lock Type
No Lock Included
Caster Product Group
Rigid Caster
Thread Guards
No
Caster Temp. Range Available
No
Tread Shape
Standard
Load Rating Range
0 to 299 lb
Wheel Bearing Type
Plain
Mounting Bolt Dia.
1/4 in
Wheel Core Material
Cast Iron
Mounting Plate Bolt Hole Pattern
D
Wheel Dia.
2 in
Mounting Plate Size
1 1/2 in x 2 11/16 in
Wheel/Tread Material
Iron

Product Description

Light-duty standard plate casters are installed onto the bottom of carts, dollies, business machines, store fixtures, food-service equipment, and other equipment that will be moved manually at moderate speeds. These casters are best suited for applications where they will be transporting relatively light loads along smooth, flat surfaces and won't encounter shock loading, such as in offices, retail stores, schools, and government buildings. Sometimes known as institutional plate casters, these light-duty standard plate casters have zinc-plated steel frames.

Standard plate casters have kingpins that securely join the casters' mounting plates to their frames. They are used in nearly every industry and are the most common type of caster used for general purpose applications. The casters' mounting plates install onto the bottom of machinery, carts, or other equipment, and the casters allow the equipment to roll to reduce effort when moving or repositioning it. These casters are available in swivel and rigid versions. The swivel casters can rotate 360°, allowing equipment to change directions while rolling. The rigid casters roll in a straight line. Two rigid plate casters will often be paired with two swivel casters to allow the equipment to both maneuver around curves and obstacles and maintain a straight course while rolling.
