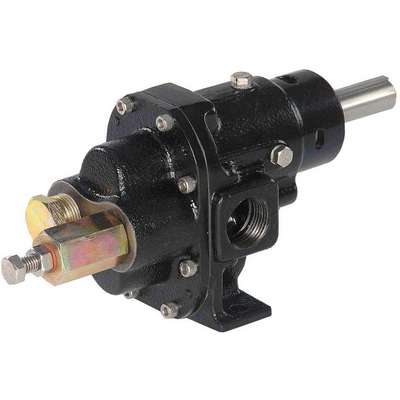

1/2" Heavy-Duty Cast Iron Rotary Gear Pump Head, Pedestal Design, 125 psi

1/2" Heavy-Duty Cast Iron Rotary Gear Pump Head, Pedestal Design, 125 psi

#913934-3 | Pkg Qty: 1

$446.94 pkg | $446.94 ea
Item Number 913934-3
Scanner Description Rotary Gear Pump Head, 1/2 In.,
Inventory Status Drop Ship Item
Weight 15.6 lb
Brand DAYTON

Technical Specifications

Brand
DAYTON
Length
10 in.
Design
Pedestal
Manufacturers Warranty Length
1 Year
Duty Rating
Heavy
Maximum Pressure
125 psi
GPM @ 100 PSI
6-1/2
Maximum Temperature (Deg. F)
210
GPM @ 125 PSI
6.1
Maximum Viscosity
550 SSU
GPM @ 125 PSI @ 1725 RPM
6.1
Mfr. Part Number
4KHF9
GPM @ 25 PSI
6.9
O-Ring
Viton
GPM @ 50 PSI
6.8
O-Ring Material
Viton
GPM @ 75 PSI
6.7
Pack Quantity
1
GPM @ Freeflow
7
Port Size
1/2 in.
GPM @ Freeflow @ 1725 RPM
7
Pump Body Material
Cast Iron
Gear
Steel Spur
Pump RPM
1725
HP @ 100 PSI
1-1/2
Recommended Motor HP
1-1/2
HP @ 125 PSI
1-1/2
Relief Valve
With
HP @ 125 PSI @ 1725 RPM
1-1/2
Seal
Mechanical With Stainless Steel, Viton, Carbon/Ceramic
HP @ 25 PSI
3/4
Shaft Height
2-5/8 in.
HP @ 50 PSI
1
Shaft Material
Steel
HP @ 75 PSI
1
Suction Lift
7.9 ft.
HP @ Free Flow
3/4
Suction Lift @ 1725 RPM
7.9 ft.
HP @ Free Flow @ 1725 RPM
3/4
Temperature Range
32 deg. to 280 deg. F
Height
3-3/4 in.
Type
Heavy Duty
Item
Rotary Gear Pump Head
Width
3-1/2 in.

Product Description

Dayton heavy duty gear pumps feature self-priming, bidirectional, positive displacement, designed to operate with nearly pulseless flow. They are used in wide variety applications including industrial, agricultural, marine, domestic, and commercial apartments. The pumps feature a ball bearing shaft support that allows for pulley drive. All pumps are fitted with standard pressure relief valves (PRV) that can be ported internally or externally.
