DAYTON

Water Tank Type Non-Pressurized, Tank Capacity 120.0 gal, Drawdown @ 40-60 PSI 26 gal

Hover over image to magnify

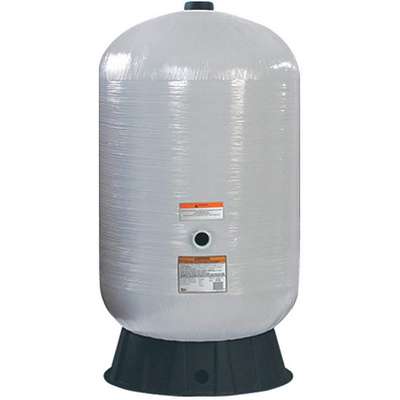

Tank,Water,Fiberglass,120 Gal,
Tank,Water,Fiberglass,120 Gal,

#913877-4 | Pkg Qty: 1

Alternate products displayed may not be identical in style or function to original selection.
No alternate products are currently available
See more options:

Technical Specifications

Key Specifications
Agency Compliance
NSF Classified to ANSI/NSF 61 Drinking Water
Item
Contact Tank
Brand
DAYTON
Maximum Temperature (Deg. F)
120
Construction Material
Fiberglass-Wound
Maximum Working Pressure
100
Diameter
24
Mfr. Part Number
5PFW1
Gallons Drawdown @ 20-40 PSI
30.7
Mfr. Warranty Length
5 yr.
Gallons Drawdown @ 30-50 PSI
26
Package Quantity
1
Gallons Drawdown @ 40-60 PSI
26
Shipping Weight
78 lb.
Gallons Drawdown @ 50-70 PSI
19.8
Tank (Gal.)
120
Gallons Drawdown @ 60-80 PSI
17.7
Tank Style
Vertical
Gallons Drawdown @ 70-90 PSI
16
Type
Side Port
Gallons Drawdown @ 80-100 PSI
14.6
General
Drawdown @ 20-40 PSI
30.7 gpm
Drawdown @ 70-90 PSI
16 gpm
Drawdown @ 30-50 PSI
26 gpm
Drawdown @ 80-100 PSI
14.6 gpm
Drawdown @ 40-60 PSI
26 gpm
Inlet Gender
Female
Drawdown @ 50-70 PSI
19.8 gpm
Tank Orientation
Vertical
Drawdown @ 60-80 PSI
17.7 gpm

Product Description

These well water tanks act as a reservoir to store water and keep the pressure consistent to reduce the start/stop cycling of the pump. Tanks keep the water pressure constant with an air bladder system that is precharged (a set amount of air is pumped into the bladder) when the tank is assembled at the factory or charged with an air compressor just before installation. Models without an air bladder require an air volume control to maintain air pressure for a consistent water flow. Tanks are cylinder shaped with rounded ends and installed in a vertical or horizontal position.
