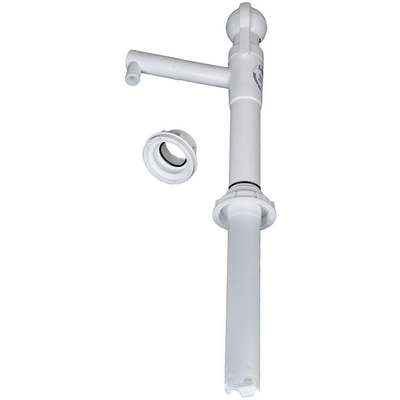

Polypropylene Hand Operated Drum Pump, Flap, Ounces per Stroke: 15 oz.

Polypropylene Hand Operated Drum Pump, Flap, Ounces per Stroke: 15 oz.
Hand Operated Drum Pump,
PI_Asset_1355064

#913782-6 | Pkg Qty: 1

$118.09 pkg | $118.09 ea
Item Number 913782-6
Scanner Description Hand Operated Drum Pump,
Inventory Status Drop Ship Item
Weight 2.55 lb
Brand APPROVED SUPPLIER

Technical Specifications

Action Type
Flap
Includes
Safety strap, adapter fitting and Self-Adhesive I.D. Label
Adapter Diameter
2 in. course and fine thread (M63R)
Inlet Size
1-5/8 in.
Adapter Material
Polypropylene
Item
Hand Operated Drum Pump
Adapter Type
Bung
Manufacturers Warranty Length
2 yr.
Agency Compliance
FDA Compliant
Maximum Head
6 ft.
Application
For Soap, Oils, Chemicals, Acid, Alkaline, Viscous Fluids, Food Processing
Maximum Liquid Temperature
207°F
Brand
APPROVED SUPPLIER
Maximum Viscosity
8000 CPS
DEF Compatible
Yes
Metered
No
Discharge Tube Length
6-3/8 in.
Mfr. Part Number
P3015
Discharge Tube Outlet OD Size
1 in.
Ounces per Stroke
15 oz.
Discharge Tubing Material
Polypropylene and Polyethylene
Overall Length
38-1/2 in.
Features
Delivers on the Up and Down Stroke. Ruggedly constructed pump has the only 24 month warranty in the industry. Constructed from FDA compliant material
Pack Quantity
1
For Use On
15 and 30 gal. Drums
Pump Body Material
Polypropylene
For Use With
For Soap, Oils, Chemicals, Acid, Alkaline, Viscous Fluids, Food Processing
Seal Material
Polyethylene
Gasket Material
NA
Standards
FDA Compliant
Housing Material
Polypropylene
Wetted Materials
Polypropylene, Polyethylene

Product Description

Food and sanitary hand drum pumps comply with specific sanitary standards of the food and drug industry to minimize the risk of product contamination. Also called food grade drum pumps, they're typically used to dispense and transfer small volumes of syrups, juices, oils, and soaps in food, beverage, and pharmaceuticals production.
