SPEEDAIRE

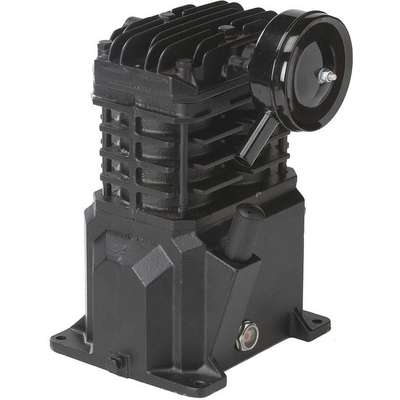

1-Stage Splash Lubricated Air Compressor Pump with 8-1/2 oz. Oil Capacity

Hover over image to magnify
Air Compressor Pump,1 Stage
Air Compressor Pump,1 Stage

#913781-1 | Pkg Qty: 1

$479.10 pkg | $479.10 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
(F)NPT Outlet
3/8 in.
Oil Capacity
8-1/2 oz.
Brand
SPEEDAIRE
Overall Depth
10-1/4 in.
Construction
Cast Iron
Overall Height
11-1/4 in.
Finish
Black Powder
Overall Width
7 in.
Flywheel Diameter
10 in.
Package Quantity
1
Free Air CFM @ Max Pressure
3.0, 3.7, 4.9
Pump RPM
690, 860, 1020
Groove Quantity
1
Rotation
CCW
Horsepower
1, 1-1/2 ,2 HP
Sheave Size @ 1725 RPM
4 in., 5 in., 5-29/32 in.
Item
Air Compressor Pump
Shipping Weight
29.16 lb.
Lubrication Type
Splash Lubricated
Stroke Length
2 in.
Maximum Pressure
135 psi
Type
Splash Lubrciated, Single Stage
Mfr. Part Number
2WGX6
Valve
Stainless Steel
Number of Cylinders
2
Valve Material
Stainless Steel
Number of Stages
1
General
Avg. Pump Life
5,000 hr
HP
1 1/2, 2, 1 hp
Bore Dia.
2 3/4 in
Maximum Output Power
2 hp
Flywheel Included
Yes
Mounting Pattern
6-9/16 in W x 5-7/8 in D
Free Air CFM @ Max. Pressure
3.0, 3.7, 4.9
Number of Grooves
1
Free Air Flow Rate @ Maximum Pressure
4.9 cfm @ 135 psi

Product Description

This Speedaire® single-stage replacement air compressor pump is designed to cycle on/off while providing continuous air with a 65/35 duty cycle. The compressed air from this model is intended for use with air tools and spray guns. Atmospheric moisture and trace oil from this compressor may require additional treatment for some applications. Pump shaft: 3/4" dia.
