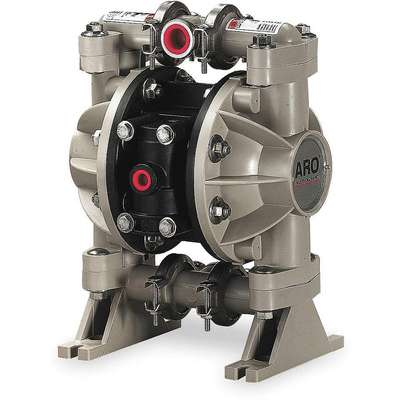

Double Diaphragm Pump: 1/2 in Inlet/Outlet Size, NPT Connection, 1/4 in FNPT Air Inlet Size

Name: Double Diaphragm Pump: 1/2 in Inlet/Outlet Size, NPT Connection, 1/4 in FNPT Air Inlet Size
Brand: ARO
SKU: 9137641
Price: 970.13 USD
Availability: InStock

Hover over image to magnify

#913764-1 | Pkg Qty: 1

$970.13 pkg | $970.13 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications

Agency Compliance

CE, RoHS, REACH

Maximum Diameter Solids

3/32 in.

Air Inlet Size

1/4 in. FNPT

Maximum Flow

13 gpm

Ball Material

Santoprene®

Maximum Flow (GPM)

Body Material

Polypropylene

Maximum Operating PSI

100

Brand

ARO

Maximum Operating Pressure

100 psi

Check Seat Material

Polypropylene

Maximum Temperature (Deg. F)

150°F

Connection Style

NPT

Mfr. Part Number

666053-3EB

Diaphragm Design

Santoprene®

Mfr. Warranty Length

5 yr.

Diaphragm Material

Santoprene®

Operation Type

Air Operated

Flow

10 gpm

Pack Quantity

Height

7-1/4 in.

Pump Operation Type

Air Operated

Housing Material

Polypropylene

Self-Priming Dry

10 ft.

Inlet/Outlet

1/2 in.

Self-Priming Wet

15 ft.

Inlet/Outlet Size

1/2 in.

Shipping Weight

9.15 lb.

Item

Double Diaphragm Pump

Valve Type

Ball

Length

14 in.

Width

12 in.

Manifold Connection

Single

General

Diaphragm Material - Pumps

Santoprene(R)

Max. Dia. Solids

3/32 in

Housing Material - Pumps

Polypropylene

Product Description

Pump lets you easily transfer solvents, slurries, and other high-viscosity liquids such as inks and paints. All-bolted injection-molded body is structurally reinforced with a fiber fill and have excellent resistance to many caustics and a wide variety of nonaggressive water-based liquids. Spring-assisted air valve comes with proprietary seal rings that require no lubrication.
