IRWIN SPEEDBOR

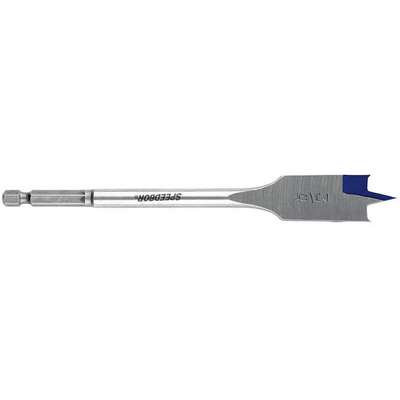

Carbon Steel Wood Drilling Bit, Spade Style, 13/16" Bit, 6" Length, 1/4" Shank Size

Hover over image to magnify
Spade Bit,13/16 In D,6 In L,I/
Spade Bit,13/16 In D,6 In L,I/

#913737-5 | Pkg Qty: 1

$4.67 pkg | $4.67 ea

Technical Specifications

Key Specifications
Brand
IRWIN SPEEDBOR
Number of Flutes
1
Construction
Carbon Steel
Overall Length
6 in.
Cutting Direction
Neutral
Pack Quantity
1
Cutting Direction
Neutral
Shank Diameter
1/4 in.
Decimal Equivalent
5/8
Shank Hex Size
1/4 in.
Drill Bit Finish
Bright (Uncoated)
Shank Length
6 in. in.
Drill Bit Material
Carbon Steel
Shank Shape
Hex
Drill Bit Size
13/16 in.
Shank Size
1/4 in.
Drill Size
13/16 in.
Shank Type
Hex
Flute Type
Straight
Shipping Weight
.15 lb.
Item
Spade Drill Bit
Spiral Direction
Neutral
Material
Carbon Steel Alloy
Sub Brand
Speedbor
Mfr. Part Number
88813
General
Adjustable Blade
No
For Use With
3/8 in. or 1/2 in. Drill
Curved Blade
No
Material - Machining
Carbon Steel
Drill Bit Grouping
Individual
Measurement System
Fractional Inch
Drill Bit Point Type
Blue-Groove(TM)
Nail Cutting
No
Drill Style
Spade
Number of Spurs
2
Extension Compatible
No
Shank Type - Machining
Hex
Finish - Machining
Bright (Uncoated)
Wire Hole
No
For Tool Type
Impact Drills

Product Description

These spade drill bits have a flat head with two cutting spurs and produce clean holes at high drilling speeds. They are also called paddle bits. These bits feature a quick-change hex shank and can be inserted and removed from the drill chuck without the use of tools, allowing the bits to be changed out faster and more efficiently than bits with a standard hex shank.

Documents

Drill Bits Overview
Item Barcode
9137375
Spade Bit,13/16 In D,6 In L,I/
