APPROVED SUPPLIER

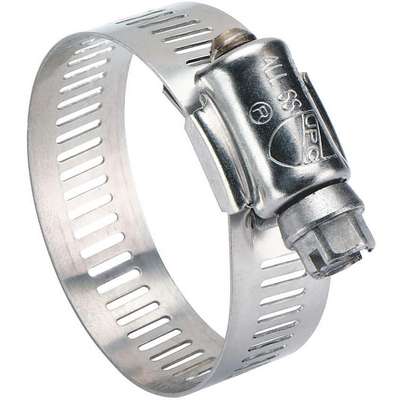

9/16" Wide, Interlocked Worm Gear Hose Clamp; PK 10

Hover over image to magnify
Hose Clamp,SS,Min.Dia.3-1/2,
Hose Clamp,SS,Min.Dia.3-1/2,

#913692 | Pkg Qty: 10

$24.00 pkg | $2.40 ea

Technical Specifications

Key Specifications
Air Consumption
scfm
Item
Worm Gear Hose Clamp
Band Material
201/301 Stainless Steel
Mfr. Part Number
6380
Band Slots
Rectangular
Pack Quantity
10
Band Width
9/16 in.
Screw Material
305 Stainless Steel
Brand
APPROVED SUPPLIER
Shipping Weight
1 lb.
Clamp Diameter Range
3-1/2 in. to 5-1/2 in.
Size Number
80
Design
Interlocked
Type
High Nickel Alloy
Hose Clamps Group
Worm Gear
Worm Gear Clamp Type
Interlocked
Housing Material
201/301 Stainless Steel
General
Band Width (In.)
9/16
Max. Clamp Dia.
5 1/2 in
Hose Clamp Band Material
201/301 Stainless Steel
Max. Clamp Dia. (In.)
5-1/2
Hose Clamp Band Width
9/16 in
Metric Dia. Max.
140 mm
Hose Clamp Housing Material
201/301 Stainless Steel
Metric Dia. Min.
89 mm
Hose Clamp Install Torque
35 in-lb
Min. Clamp Dia.
3 1/2 in
Hose Clamp Product Group
Worm Gear Hose Clamp
Min. Clamp Dia. (In.)
3-1/2
Hose Clamp Screw Material
305 Stainless Steel
Screw Size (In.)
5/16

Product Description

General-Purpose Hose Clamps

  • Pkg. qty.: 10 Interlocked construction resists shear.
Item Barcode
9136920
Hose Clamp,SS,Min.Dia.3-1/2,
  Name Item Description
Grainger Dropship Grainger Dropship 5CZC0 Hose Clamp, SS,Min.Dia.3-
UNSPSC CODES UNSPSC CODES 31162906
VMRS (ATA) CODES VMRS (ATA) CODES 053-008-007 Hose Clamp, SS,Min.Dia.3-
