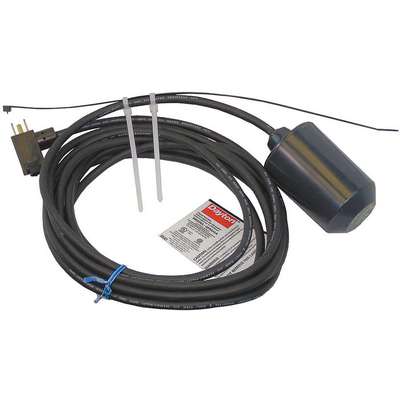

Tether Float Switch, Mechanical

Tether Float Switch, Mechanical
Float Switch,Mechanical,115VAC,
PI_Asset_1356738
PI_Asset_1356739

#913654-7 | Pkg Qty: 1

$42.08 pkg | $42.08 ea
Item Number 913654-7
Scanner Description Float Switch,Mechanical,115VAC,
Inventory Status Drop Ship Item
Weight 1.75 lb
Brand DAYTON

Technical Specifications

Agency Compliance
UL, CSA
Maximum Liquid Temperature
140°F
Amps
13A
Maximum Temperature (C)
60
Brand
DAYTON
Maximum Temperature (F)
140
Connection
Plug with Piggyback
Maximum Voltage
250 V
Electrical Connection
Piggyback
Maximum Water Level Adjustment
28
Float Diameter
2-5/8
Mfr. Part Number
6PNU4
Float Length
4-5/8
Minimum Water Level Adjustment
7
Float Material
ABS
Mounting Bracket Material
Plastic
Float Switch Contact Form
Normally Open
Pack Quantity
1
Float Switch Cord Length
10 ft.
Pumping Range Minimum/Maximum
7 to 28
Float Switch Float Material
ABS
Specific Gravity
0.6
Float Switch Off Point
45° Below Horizontal
Tether Length Minimum-Maximum
3 in. to 18 in.
Float Switch Type
Tether
Tether/Solid State
Tether
For Use With
Liquid
Type
Tether
HP @ 1 Phase - 115V
1/2
VA Rating
57-1/2
Includes
Mounting Strap
Voltage
115 VAC
Item
Float Switch, Mechanical
Wire Gauge
16
Maximum Amps Running
10

Product Description

These tether float switches are activated by a float that is attached to the pump by a flexible tether that can be adjusted so the pump starts and stops automatically at preset levels. They require more space to operate compared to vertical float switches since the flexible tether moves in an arc as the water level rises and falls in the sump basin.
