LENOX

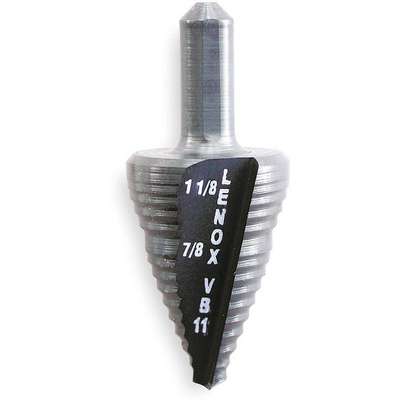

Step Drill Bit, High Speed Steel, Black Oxide, 7/8" to 1 1/8" Size Range

Hover over image to magnify
Hss Step Drill Bit,7/8 To 1-1/
PI_Asset_965295
PI_Asset_965296
PI_Asset_965297
PI_Asset_977388
Hss Step Drill Bit,7/8 To 1-1/
PI_Asset_965295
PI_Asset_965296
PI_Asset_965297
PI_Asset_977388

#913570-6 | Pkg Qty: 1

Alternate products displayed may not be identical in style or function to original selection.
Alternate Products
Hhs Step Drill Bit 7/8 - 1-1/8
$115.50 pkg | $115.50 ea
Item: 910764-4
Pkg Qty: 1
Step Drill Bit,Hss,9 Sizes,1/2-
$80.84 pkg | $80.84 ea
Item: 932181-2
Pkg Qty: 1

Technical Specifications

Key Specifications
Brand
LENOX
Minimum Hole Size
7/8 in.
Cutting Direction
Right
Number Hole Sizes
2
Cutting Direction
Right Hand
Number of Flutes
2
Drill Bit Finish
Steam Oxide
Overall Length
2-3/4 in.
Drill Bit Material
High Speed Steel
Pack Quantity
1
Drill Bit Shank Shape
3-Flat
Series
VARI-BIT
Impact Rated
No
Shank Diameter
3/8 in.
Item
Step Drill Bit
Shipping Weight
.25 lb.
Maximum Drilling Depth
1 in.
Size Range
7/8 to 1-1/8 in.
Maximum Hole Size
1-1/8 in.
Sizes Included
7/8 in., 1-1/8 in.
Mfr. Part Number
30888VB11
General
Application
Steel
Material - Machining
High Speed Steel
Drill Bit Grouping
Individual
Measurement System
Fractional Inch
Drill Bit Point Type
Split Point
Shank Type - Machining
Straight with Three Flats
Finish - Machining
Black Oxide
Step Increments
1/4 in

Product Description

The shanks on these step drill bits have three flats that help prevent the bits from slipping in the drill chuck during drilling. These cone-shaped bits have steps of increasing diameter marked along their cutting head. As each bit is pushed into a piece of sheet metal or other thin material, each step on the bit widens the hole. The bits also have a self-starting split point that prevents the bits from moving, or walking, when starting to drill, which eliminates the need for using a center drill to create a starter hole before drilling.
