HEAT WAGON

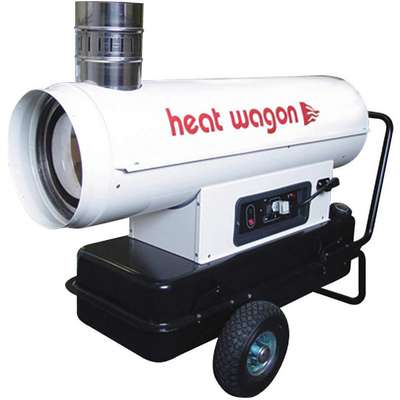

Heat Wagon Oil Fired Torpedo Heater, 17.2 gal., 0.80 gph, BtuH Output 91,900, 4600 sq. ft.

Hover over image to magnify
Torpedo Heater,91,900 Btuh
Torpedo Heater,91,900 Btuh

#913552-2 | Pkg Qty: 1

$4,099.95 pkg | $4,099.95 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Air Flow
880 cfm
Mfr. Part Number
HVF110
Brand
HEAT WAGON
NEMA Plug Configuration
5-15
Fuel Type
JP-8/Jet A Fuel, #1/#2 Diesel, Kerosene
Package Quantity
1
Height
31 in.
Shipping Weight
145 lb.
Hz
60
Tank Capacity
17.2 gal.
Item
Oil Fired Torpedo Heater
Voltage
120 VAC
Length
49 in.
Width
20 in.
General
Automatic Safety Shut-Off Included
Yes
Includes
Fuel Gauge
Firing Type
Indirect-Fired
Key Features
LED Diagnostics
Flame-Out Sensor Included
Yes
LED Diagnostics Included
Yes
Fuel Consumption
0.8 gph
On/Off Switch Included
Yes
Fuel Gauge Included
Yes
Overall Dimensions - H x L x D
31 in x 49 in x 49 in
Heating Area
4,600 sq ft
Power Failure Indicator Included
Yes
Heating Capacity Output
91,900 BtuH
Standards
CSA-B140.8-1967
Hours on One Filling
22 hr
Tank Capacity/Hours on One Filling
17.2 gal/22 hr
Ignition Power Source
Electric
Thermal Overheat Protection
Automatic Reset

Product Description

Indirect-fired portable oil and kerosene torpedo heaters have a chamber that is isolated from the flame, allowing the exhaust fumes to be vented outside and the heated air to remain clean. They provide the primary source of heat in large spaces like construction sites where the heat can be ducted.
