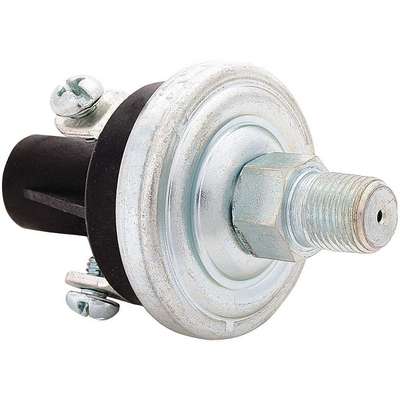

Honeywell Diaphragm Pressure Switch, Differential: 8 to 13 psi, Range: 8 to 13 psi, NEMA Rating Not Rated

Name: Honeywell Diaphragm Pressure Switch, Differential: 8 to 13 psi, Range: 8 to 13 psi, NEMA Rating Not Rated
Brand: HONEYWELL
SKU: 9134446
Price: 72.47 USD
Availability: InStock

Hover over image to magnify

#913444-6 | Pkg Qty: 1

Alternate products displayed may not be identical in style or function to original selection.

No alternate products are currently available

See more options:

Shop All Products

Technical Specifications

Key Specifications

AC Contact Rating

1 A @ 120 V, 0.5 A @ 240 V

Item

Pressure Switch

Action

Standard

Mfr. Part Number

76578-B00000100-01

Actuation Type

Diaphragm

NEMA Rating

Not Rated

Brand

HONEYWELL

Pack Quantity

Burst Pressure

750 psi

Phase

Single

Contact Form

SPST-NC

Port Type

1/8-27 in. MNPT

Contact Type

1-NC

Pressure Range

8 psi to 13 psi, +-2 psi

DC Contact Rating

6 V @ 15 A, 12 V @ 8 A, 24 V @ 4 A

Range

8 to 13 PSI

Differential

8 to 13 PSI

Series

5000

Differential Pressure

Shipping Weight

.15 lb.

Enclosure

Glass Reinforced Polyester

Temperature Range

-40 deg. F to 250 deg. F

Factory On/Off Setting

8/13 psi

Type

With Standard Terminal

IP Rating

General

Application

Air, Oil or Hydraulic Fluid

Special Features

Single Circuit, Two Terminals, Glass Reinforced Polyester Enclosure

Product Description

This extended-duty pressure switch features a glass-reinforced polyester enclosure and a screw terminal connection. This switch is factory-set, but capable of field adjustment. It features a Kapton diaphragm for

compatibility with a wide variety of fluids, and various terminations including a Metri-Pack connector that forms a tight seal when connected. Design elements also include durable construction, compact size, and enhanced set point integrity.
