PARKER

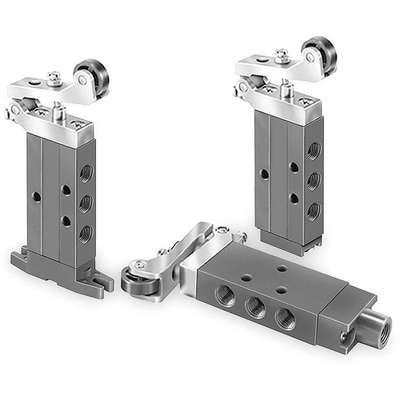

Manual Air Control Valve: 1/8 in Valve Port Size, NPT, Roller / Spring, 150 psi, 32° to 175°F
Hover over image to magnify
#913402-5Pkg Qty: 1
$204.20 pkg | $204.20 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Actuator/Return
Roller/Spring
Overall Length
5 in.
Air Consumption
scfm
Overall Width
1/2 in.
Body
Aluminum
Package Quantity
1
Body Material
Aluminum
Pipe Size
1/8 in.
Brand
PARKER
Port Size
1/8 NPT
Coefficient of Volume
0.2
Series
Directair 2
Connection
NPT
Shipping Weight
.42 lb.
Cv
0.2
Type
Roller
Item
Manual Air Control Valve
Valve Actuator/Return
Roller / Spring
Maximum CFM
0.2
Valve Maximum Pressure Rating
150 psi
Maximum Pressure
150 psi
Valve Port Size
1/8 in.
Mfr. Part Number
414211000
Valve Temperature Range
32° to 175°F
Number of Positions
2
Valve Ways/Positions
3-Way/2-Position
Overall Height
2-1/4 in.
Width
0.62 in.
General
Actuator / Return
Roller/Spring
Number of Ways
3
Air Valve Type
3-Way, 2-Position
Pneumatic Valves Product Group
Manual Air Control Valve
Center Position
Closed
Valve Actuator / Return
Roller / Spring
For Use With
General Pneumatic Applications
Valve Ways and Positions
3-Way/2-Position
Max. CFM - Valves
0.2 cfm
Product Description
Parker® Directair 2 manual air control valve features fluorocarbon seals and a stainless steel spool for greater chemical compatibility and the ability to withstand higher temperatures. Model is pre-lubricated and requires clean, lubricated air for long service life.
Expertly Selected Product Pairings
Item Barcode
Manual Valve,Roller,1/8 NPT,3
