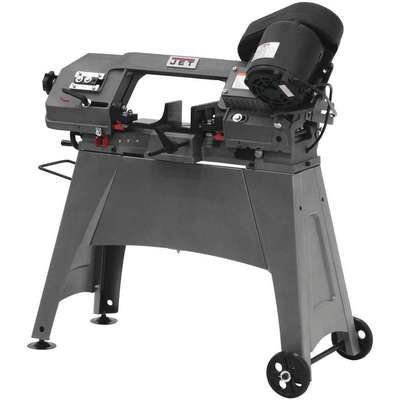

JET® 414458 Horizontal/Vertical Combo, Stationary Band Saw; 64-1/2 in. Blade Length, 3 Speeds

Hover over image to magnify
Horz/Vert Band Saw,1/2HP,115/
PI_Asset_979402
Horz/Vert Band Saw,1/2HP,115/
PI_Asset_979402
JET® 414458 Horizontal/Vertical Combo, Stationary Band Saw; 64-1/2 in. Blade Length, 3 Speeds Video

#913375-1 | Pkg Qty: 1

$945.27 pkg | $945.27 ea
Pricing is subject to change without notice

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Blade Length
64-1/2 in.
Operation
Manual
Blade Thickness
0.025 in.
Orientation
Horizontal/Vertical Combo
Brand
JET
Overall Depth
36 in.
Horsepower
0.5 HP
Overall Height
39-1/2 in.
Hz
60 Hz
Overall Width
20 in.
Item
Stationary Band Saw
Package Quantity
1
Material Application
Metal
Phase
1
Mfr. Part Number
414458
Shipping Weight
180 lb.
Number of Speed Settings
3
Voltage
115/230V AC
General
Band Saw Operation
Manual
Max. Blade Length
64 1/2 in
Band Saw Type
Combination Horizontal/Vertical
Max. Blade Width
1/2 in
Blade Wheels Dia.
7.375 in
Miter Angle Range
45 Degrees , 90 Degrees
Current
9.0/4.5A
Rectangular Cutting Capacity - Horizontal
2 in x 6 in, 5 in x 5 3/4 in
Cutting Capacity Square
5 in
Round Cutting Capacity - Horizontal
5 in
HP
0.5 hp
SFPM Range
80 to 200
Includes
Vertical Worktable; 1/2 in Carbon Steel Blade; Adjustable Material Stop
Throat Depth - Vertical
6 in

Product Description

Manual combination vertical and horizontal band saws are manually operated in both the vertical and horizontal position. When the saw is in the vertical position, the workpiece rests on a table while the operator pushes the material through the blade. When the saw is in the horizontal position, the workpiece is clamped to a table and the saw head is lowered to make the cut. Manually operated saws are used in low-volume machine and maintenance shops when similar materials and cuts are made.
