NUMATICS

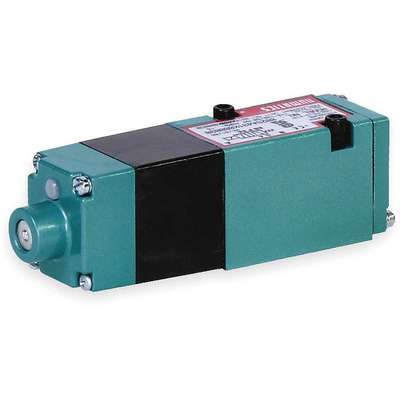

Solenoid Air Control Valve: 120V AC, Solenoid / Spring, 1/4 in Pipe Size, 0 to 150 psi

Hover over image to magnify
Solenoid Valve,4 Way,2 Pos,
Solenoid Valve,4 Way,2 Pos,

#913365-1 | Pkg Qty: 1

$274.52 pkg | $274.52 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Actuator/Return
Solenoid/Spring
Operational Pressure Range
0 to 150 psi
Air Consumption
scfm
Overall Height
1-1/2 in.
Ambient Temperature
-10 to 115 deg. F
Overall Length
5-1/16 in.
Body Style
Body Ported
Overall Width
1-3/8 in.
Brand
NUMATICS
Package Quantity
1
CFM
46
Pipe Size
1/4 in.
Coefficient of Volume
1
Requires
Mark 8 Base or Manifold
Current Rating
380 mA (In Rush), 90 mA (Holding)
Shipping Weight
.8 lb.
Cv
1
Type
4-Way, 2-Position
Design
Base Mount
Vacuum
0 to 28 in.Hg
Electrical Connections
AC Plug-In w/Light
Valve Actuator/Return
Solenoid / Spring
Item
Solenoid Air Control Valve
Valve Type
4-Way, 2-Position, 5-Port
Maximum CFM
46
Valve Vacuum Range
0 to 28 in. Hg
Maximum Operating PSI
150
Valve Ways/Positions
4-Way/2-Position
Meets/Exceeds
NEMA 4
Voltage
120 VAC
Mfr. Part Number
081SA400K000030
Width
1-3/8 in.
NEMA Classification
NEMA 4
General
Actuator / Return
Solenoid/Spring
Shifting Technology
Spool & Sleeve
Air Valve Type
4-Way, 2-Position
Standards
CE, CSA, UL
Max. CFM - Valves
46 cfm
Vacuum Range
0 to 28 in Hg
Override
Non-Locking Flush
Valve Actuator / Return
Solenoid / Spring
Pilot Port Size
1/8 in NPT
Valve Ways and Positions
4-Way/2-Position
Pneumatic Valves Product Group
Solenoid Air Control Valve

Product Description

This 4-Way, 2-Position air control valve is designed to be shifted by means of an electrical solenoid.
