DAYTON

Water Tank Capacity 44.0 gal., Drawdown at 40-60 PSI 13.0 gal., Tank Orientation Vertical

Hover over image to magnify

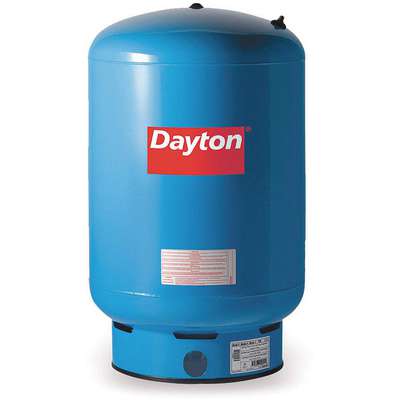

Water Tank, 44 Gal,36 1/4 H x
Water Tank, 44 Gal,36 1/4 H x

#913259 | Pkg Qty: 1

Pricing is subject to change without notice
Alternate products displayed may not be identical in style or function to original selection.
No alternate products are currently available
See more options:

Technical Specifications

Key Specifications
Acceptance Factor
0.4
Item
Water Tank
Agency Compliance
NSF/WSC
Maximum Temperature (Deg. F)
140
Brand
DAYTON
Maximum Working Pressure
125
Construction Material
Steel
Mfr. Part Number
3GVT8
Diameter
21
Mfr. Warranty Length
5 yr.
Diaphragm
Butyl Rubber
Package Quantity
1
Gallons Drawdown @ 20-40 PSI
17.7
Precharge Pressure
40 psi
Gallons Drawdown @ 30-50 PSI
12
Shipping Weight
65 lb.
Gallons Drawdown @ 40-60 PSI
13
Standard Tank Equivalent
120 gal.
Gallons Drawdown @ 50-70 PSI
10.4
Tank (Gal.)
44
Gallons Drawdown @ 60-80 PSI
9.3
Tank Style
Vertical
Gallons Drawdown @ 70-90 PSI
8.4
Type
Precharged
Gallons Drawdown @ 80-100 PSI
7.7
General
Drawdown @ 20-40 PSI
17.7 gpm
Drawdown @ 70-90 PSI
8.4 gpm
Drawdown @ 30-50 PSI
12 gpm
Drawdown @ 80-100 PSI
7.7 gpm
Drawdown @ 40-60 PSI
13 gpm
Inlet Gender
Female
Drawdown @ 50-70 PSI
10.4 gpm
Tank Orientation
Vertical
Drawdown @ 60-80 PSI
9.3 gpm

Product Description

These well water tanks act as a reservoir to store water and keep the pressure consistent to reduce the start/stop cycling of the pump. Tanks keep the water pressure constant with an air bladder system that is precharged (a set amount of air is pumped into the bladder) when the tank is assembled at the factory or charged with an air compressor just before installation. Models without an air bladder require an air volume control to maintain air pressure for a consistent water flow. Tanks are cylinder shaped with rounded ends and installed in a vertical or horizontal position.
