DAYTON

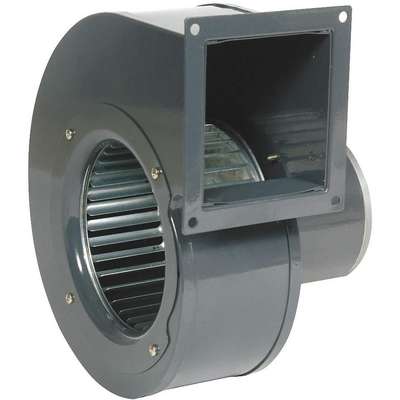

Rectangular Permanent Split Capacitor OEM Specialty Blower, Flange: Yes, Wheel Dia: 6-1/4", 115VAC

Hover over image to magnify
Psc Blower,115 Volts, 549 Cfm
Psc Blower,115 Volts, 549 Cfm

#913231 | Pkg Qty: 1

Alternate products displayed may not be identical in style or function to original selection.
Alternate Products
Blower,485 Cfm,115V,1.35A,1650
$180.08 pkg | $180.08 ea
Item: 918162-1
Pkg Qty: 1

Technical Specifications

Key Specifications
Agency Compliance
UL Recognized US and Canada (E19455) - UL507, CE
Overall Height
11-1/8 in.
Brand
DAYTON
Overall Width
10-3/4 in.
Item
OEM Specialty Blower
Pack Quantity
1
Mfr. Part Number
12G803
Phase
1
Motor Enclosure
Totally Enclosed Nonventilated
Shape
Rectangular
Motor Type
Permanent Split Capacitor
Shipping Weight
16.05 lb.
Overall Depth
10-7/16 in.
Voltage
115 VAC
General
Blower Conduit Box
Yes
CFM @ 0.700-In. SP
390
Blower Motor Type
Permanent Split Capacitor
CFM @ 0.800-In. SP
360
Blower Outlet Shape
Rectangular
Dimension J
6 5/8 in
Blower Thermal Protection
Auto
Dimension K
5 5/8 in
Blower Voltage
115V AC
Dimension L
6 in
Blower Wheel Diameter
6 1/4 in
Dimension M
5 in
Blower Wheel Width
3 13/16 in
Includes
Discharge Mounting Flange
CFM @ 0.000-In. SP
589
Inlet Dia.
5 5/16 in
CFM @ 0.100-In. SP
538
Max. Ambient Temp.
104 Degrees F
CFM @ 0.200-In. SP
510
Max. Inlet Temp.
104 Degrees F
CFM @ 0.300-In. SP
500
Outlet Height
4 1/4 in
CFM @ 0.400-In. SP
480
Outlet Width
5 1/4 in
CFM @ 0.500-In. SP
450
With Flange
Yes
CFM @ 0.600-In. SP
435

Product Description

Acting as a direct replacement for many OEM blowers with the same physical footprint, this powerful direct-drive blower with forward-curve wheel provides economical air delivery for general heating, cooling, ventilating, or component cooling. The dynamically balanced blower provides smooth and quiet operation. The noise and vibration are held to a minimum to maintain cfm at higher static pressures. The motor has cast aluminum end shields for greater heat dissipation and protection, resulting in less downtime and longer service life. The min./max. operating temperature range is -20° to 104°F.
