INTERMATIC

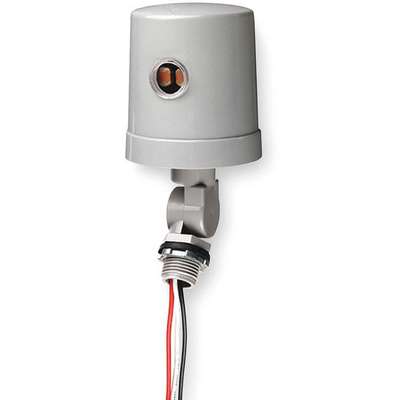

Intermatic Photocontrol, 120 to 277VAC Voltage, 4150 Max. Wattage, 1/2" Male Pipe Thread Mounting
Hover over image to magnify
#913184-8Pkg Qty: 1
$53.58 pkg | $53.58 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
INTERMATIC
Maximum Incandescent Amps
15
Color Family
Gray
Maximum Wattage
4150
Contact Form
SPST
Mfr. Part Number
K4236C
Depth
3 in.
Mfr. Warranty Length
2 yr.
Description/Special Features
Swivel Type with Built in Relay
Mounting
1/2 in. Male Pipe Thread
Enclosure Type
Raintight
NEMA Rating
Not Rated
Foot Candles Off
3 to 15
Package Quantity
1
Foot Candles On
1.0 to 5.0
Setting
Dusk to Dawn
Housing Material
Polycarbonate
Shipping Weight
.4 lb.
Item
Photocontrol
Temperature Range
-40 deg. F to 158 deg. F
Length
5-3/4 in.
Voltage
120 to 277 VAC
Maximum Ballast Amps
8.3
Width
3 in.
General
For Use With
Parking Lot Lighting, Area Lighting, Car Lot Lighting, Security Lighting, Billboard Lighting, Municipal Lighting, Roadway Lighting, Street Lighting
Standards
CSA, UL
Includes
Locking Nut, Washer Gasket
Product Description
This photocontrol is designed for outdoor use and features a built-in delay to prevent false cycling due to car headlights and lighting. It also offers a cadmium-sulfide photocell with sonic-welded polycarbonate case and lens.
