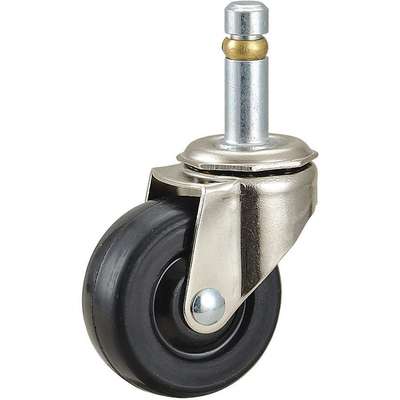

Light Duty Friction-Ring Stem Caster; 75 lb. Load Rating, 2" Wheel Dia.

Hover over image to magnify
Swivel Stem Caster,2 In,75 Lb,
Swivel Stem Caster,2 In,75 Lb,

#913020-3 | Pkg Qty: 1

$7.22 pkg | $7.22 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
APPROVED SUPPLIER
Load Rating
75 lb.
Caster Brake Included
No
Mfr. Part Number
3A787
Caster Brake Type
No Brake Included
Mounting Height
2-1/2 in.
Caster Load Rating Range
Light Duty
Non-Marking
No
Caster Raceway
Single Ball
Number of Wheels
1
Caster Stem Type
Friction Ring
Overall Height
2-1/2 in.
Caster Sub-Type
Swivel
Package Quantity
1
Caster Wheel Bearings
Plain
Shipping Weight
.35 lb.
Caster Wheel/Tread Material
Rubber
Stem Diameter
7/16 in.
Core Color
Black
Stem Length
1-3/8 in.
Core Material
Rubber
Wheel Color
Black
Frame Finish
Nickel Plated
Wheel Diameter
2 in.
Frame Material
Steel
Wheel Width
7/8 in.
Item
Friction-Ring Stem Caster
General
Application
Office Chairs and Furniture
Standards
BIFMA/ANSI
Brake Type
No Brake Included
Stem Dia.
7/16 in
Caster Finish
High Nickel
Stem Dia. (In.)
7/16
Caster Frame Material
Steel
Stem Hole Dia.
7/16"
Caster Product Group
Swivel Caster
Stem Hole Location
Centered on Housing, 1, 7/16"
Caster Stem Size
7/16 in x 1-3/8 in
Stem Length (In.)
1-3/8
Caster Temp. Range Available
Yes
Swivel Raceway Type
Single Ball
Features
Soft Tread for Hard Surfaces
Tread Shape
Standard
Load Rating (Lb.)
75
Wheel Bearing Type
Plain
Load Rating Range
0 to 299 lb
Wheel Core Material
Rubber
Operating Temperature Range
-40° to 160°F
Wheel Dia.
2 in
Overall Height (In.)
2-1/2
Wheel Dia. (In.)
2
Raceway
Single Ball
Wheel/Tread Material
Rubber

Product Description

These friction-ring stem casters are installed on chairs, carts, fixtures, and other office furniture and equipment. They are suitable for use in offices, retail settings, and other environments where the casters won't be exposed to heavy loads, chemicals, liquids, or high temperatures. Soft-wheel casters are less likely to damage hard tile or wood floors than hard-wheel casters, and hard-wheel casters won't grab or snag carpets.

Friction-ring stem casters each have a stem that presses into an appropriately sized hole or socket in tubes, pipes, wood, or compatible brackets on furniture or equipment. A spring ring at the end of the stem expands to hold the caster in place once it's installed in the hole or socket. Also known as grip-ring stem casters, these casters are used on furniture or equipment such as office chairs, tables, and medical equipment to allow them to roll as they're being moved or repositioned. Friction-ring stem casters require few or no tools for installation, making them well suited for applications where casters need to be replaced frequently. These swivel casters can rotate 360°, allowing equipment to change directions while rolling.
