PARKER

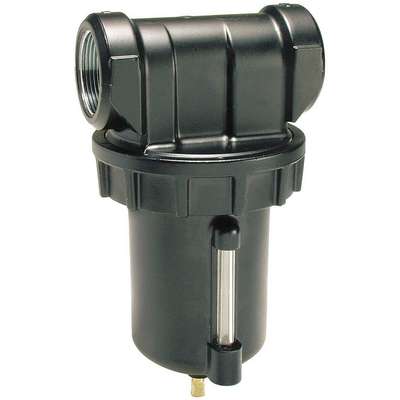

Compressed Air Filter: Particulate, 1 in NPT, 5 micron, 300 cfm, 175 psi Max Op Pressure

Hover over image to magnify
Compressed Air Filter,1 In
PI_Asset_1362939
Compressed Air Filter,1 In
PI_Asset_1362939

#912974-4 | Pkg Qty: 1

$337.19 pkg | $337.19 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Air Consumption
scfm
Maximum Pressure
175 psi
Bowl Material
Die Cast Zinc
Maximum Temperature
150 deg. F
Brand
PARKER
Maximum Temperature (Deg. F)
150
Depth
4.9 in.
Mfr. Part Number
F602-08WGR/M4
Drain Port Size
Push Type
NPT
1 in.
Drain Type
Automatic
Overall Height
8.72 in.
Filter Rating
5 micron
Overall Width
4.9 in.
Housing
Zinc
Package Quantity
1
Housing Material
Zinc
Pipe Size
1 in. NPT
Inlet/Outlet
1
Product Size
Heavy-Duty
Item
Compressed Air Filter
Shipping Weight
6.1 lb.
Maximum Flow
300 cfm
Type
General Purpose
Maximum Flow (CFM)
300 CFM
Width
4.9 in.
General
Air Inlet Type
NPT
For Fluid Type
Oil, Water
Air Outlet Size
1 in
For Removal Of
Particles, Water
Air Outlet Type
NPT
For Substance Type
Liquid Water, Oil, Particles
Bowl Material - Air Treatment
Zinc
Includes
Air Filter, Internal Auto Drain, Metal Bowl, Sight Gauge
Bowl Size - Air Treatment
16.0 oz
Max. Flow - Air Treatment
300 cfm
Connection Size - Air Treatment
1 in NPT
Max. Flow Range - Air Treatment
201 to 300 cfm
Differential Pressure Indicator Included
No
Max. Incoming Pressure - Air Treatment
175 psi
Drain Part Compatibility
SA602MD
Minimum Operating Pressure
20 psi
Filter Bowl Capacity
16 oz
Number of Air Inlets
1
Filter Bowl Material
Metal
Number of Air Outlets
1
Filter Element Material
Polypropylene
Pressure Drop
5 psig
Filter Media
Polypropylene
Sight Gauge Included
Yes
Filter Rating (Microns)
5
Size - Air Treatment
Standard
Filter Rating - Air Treatment
5 micron
System Location
Air Line

Product Description

General Purpose Filters

  • Remove impurities down to 5 microns Feature a heavy-duty bowl with sight glass, manual drain, and a larger surface area for longer life.
