PARKER

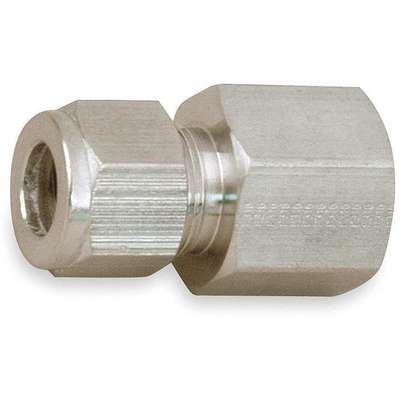

Female Connector, 3/8" Tube Size, 1/4" Pipe Size - Pipe Fitting, Metal, 7/8" Hex Size

Hover over image to magnify
Female Connector,Pipe 1/4 In,
PI_Asset_928179
Female Connector,Pipe 1/4 In,
PI_Asset_928179

#912934-5 | Pkg Qty: 1

$36.87 pkg | $36.87 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
PARKER
Package Quantity
1
Item
Female Connector
Shipping Weight
.1 lb.
Mfr. Part Number
6FSC4N-316
General
Compatible Fitting Brands
A-LOK(R)
Fitting Side B Pipe Size
1/4 in
End Connection Type
Compression
For Tube OD
3/8 in
Fitting Body Material
316 Stainless Steel
For Tube Outside Diameter
3/8 in
Fitting Side A Tube Outer Diameter
3/8 in
Material Grade
316

Product Description

With a compression design that allows for easy assembly this PARKER A-LOK® female connector provides a leaktight seal for high pressure, vibration, and vacuum in gas or liquid applications. Features a double-ferrule design that allows the front ferrule to create a pressure seal on tube and body. Fitting won’t twist the tubing during installation so that the mechanical integrity of the tubing is preserved. Has a 4:1 safety factor with respect to the working pressure capabilities of the tubing used. Can be used with 304, 316, or 316L stainless steel tubing. For use in refineries, chemical processing, power generation, and instrument lines.
