DWYER INSTRUMENTS

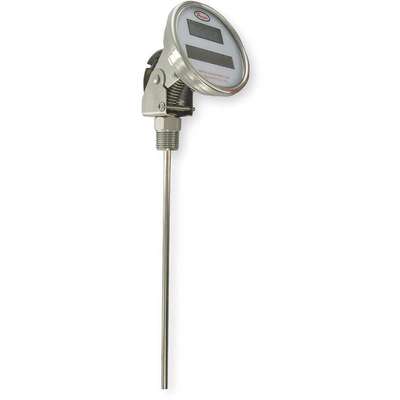

Dwyer Instruments DBTA3251 Thread-Mounted Digital Thermometer; 3 in. Dial, -58 deg. F to 302 deg. F, 2-1/2 in. Stem Length
#912827-8 | Pkg Qty: 1
$212.97 pkg | $212.97 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Accuracy
±1%
Mounting Location
Adjustable-Angle
Brand
DWYER INSTRUMENTS
Package Quantity
1
Case
Hermetically Sealed
Power Source
Solar
Case Material
Stainless Steel
Resolution
0.1 deg. F/0.1 deg. C
Connection Size
1/2 in. NPT
Sensing Element
Bimetal
Dial Size
3 in.
Shipping Weight
.75 lb.
Display Type
LCD
Stem Diameter
1/4 in.
Housing Material
300 Stainless Steel
Stem Length
2-1/2 in.
Item
Thread-Mounted Digital Thermometer
Stem Material
Stainless Steel
Lens Material
Acrylic
Thread Size
1/2 in.
Mfr. Part Number
DBTA3251
Thread Type
NPT
Mfr. Warranty Length
1 yr.
Voltage
3 V
General
Adjustments
External
Minimum Temperature °F
-58 Degrees F
Construction
300 Stainless Steel Housing with Acrylic Lens and Stainless Steel Stem
Number of Digits
3.5
Digit Height
0.5 in
Power Source Details
3V Solar Cell (Minimum 35 lux)
Digital Display
3 in dia Display with 3 1/2-Digit LCD - 1/2 in Digit Height
Process Connection
1/2 in NPT
Display Diameter
3 in
Scale
Celsius, Fahrenheit
Display Size
3 in dia
Scale Type
Digital
Functions
Degrees C/ Degrees F Switchable
Temperature Range
-58 Degrees to 302 Degrees F/-50 Degrees to 150 Degrees C
Manufacturer Warranty Length
1 yr
Temperature Resolution C
0.1 Degrees C
Maximum Temperature °C
150 Degrees C
Temperature Resolution F
0.1 Degrees F
Maximum Temperature °F
302 Degrees F
Thermometer Type
Solar-Powered Digital Thermometer
Minimum Temperature °C
-50 Degrees C
Thread Gender
Male
Product Description
With an adjustable-angle display, these thread-mounted thermometers can be positioned at different angles for viewing. They have a durable cast-aluminum case that’s water-resistant. They are commonly used for measuring temperatures in HVAC systems.
