PARKER

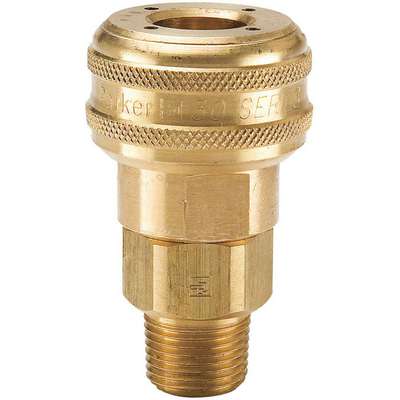

Quick Connect Hose Coupling: 3/8 in Body Size, 3/8 in Hose Fitting Size, Push-to-Connect, NPT

Hover over image to magnify
Quick Coupler Body,3/8 In
PI_Asset_1355821
Quick Coupler Body,3/8 In
PI_Asset_1355821

#912567-4 | Pkg Qty: 1

$49.54 pkg | $49.54 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Air Consumption
scfm
Maximum Pressure
300 psi
Body Size
3/8 in.
Mfr. Part Number
B34
Brand
PARKER
Package Quantity
1
Connection Size
3/8 in.
Pipe Size
3/8 in.
Hose Connection
(M)NPT
Quick Connect Coupling Interchange
Industrial
Item
Coupler Body
Seals
Nitrile
Locking Type
Push-to-Connect
Shipping Weight
.4 lb.
Material
Brass
Type
Industrial Interchange
Maximum Flow
50 cfm
General
Application
Pneumatic
Interchange Type - Quick Connect Air Couplings
Industrial
Barbed
No
Material - Quick Connect Air Couplings
Brass
Body Size - Quick Connect Air Couplings
3/8 in
Max. Air Flow (SCFM)
50
Coupling Component
Socket
Max. Outside Dia.
1 3/8 in
Coupling Locking Type
Push-to-Connect
Max. Pressure - Quick Connect Air Couplings
300 psi
Features
Push to Connect
Max. Working Pressure @ 70 F
300 psi
Hose Connection - Quick Connect Air Couplings
(M)NPT
Pipe Size - Quick Connect Air Couplings
3/8"
Hose Fitting Gender
Male
Product Grouping - Quick Connect Air Couplings
Quick Coupler Body
Includes Valve
Yes
Seals - Quick Connect Air Couplings
Nitrile

Product Description

Industrial interchange brass quick-connect air coupling bodies are the female end of coupling sets. Also called sockets, they accept coupling plugs (nipple or male ends) to connect tools to air, water, or fluid lines. High-flow couplings increase flow for greater tool efficiency, reduce pressure drop, and decrease air costs. Brass is a strong, highly conductive metal that resists corrosion and maintains durability at high temperatures. Brass is softer than other metal plugs and sockets for better connections and compatibility with copper or zinc piping.
