This product has been discontinued and is no longer available. Shop Category

DAYTON

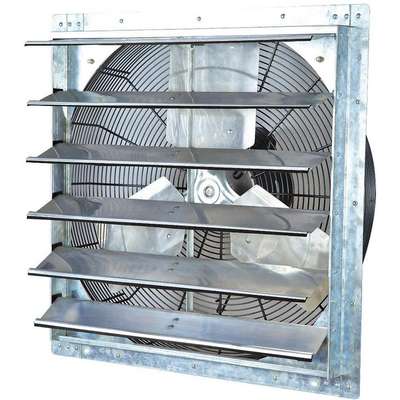

1/4 HP 24"-Dia. 115VACV Shutter Mount Exhaust Fan, 25" Square Opening Required

Name: 1/4 HP 24"-Dia. 115VACV Shutter Mount Exhaust Fan, 25" Square Opening Required
Brand: DAYTON
SKU: 9124530
Price: 631 USD
Availability: InStock

Hover over image to magnify

#912453 | Pkg Qty: 1

Alternate products displayed may not be identical in style or function to original selection.

No alternate products are currently available

See more options:

Shop All Products

Technical Specifications

Key Specifications

Agency Compliance

UL Listed for US and Canada

Motor HP

1/4

Bearing Type

Ball

Motor Type

PSC

Blade Diameter

24 in.

Number of Blades

Blade Material

Stamped Aluminum

Pack Quantity

Brand

DAYTON

Phase

Height

27-1/8 in.

Shipping Weight

39 lb.

Item

Shutter Mount Exhaust Fan

Voltage

115 VAC

Mfr. Part Number

1HLB2

Width

27-1/8 in.

Motor Enclosure

Totally Enclosed Air-Over

General

Blade Dia.

24 in

Includes

Shutter

CFM @ 0.000-In. SP

4244

Max. Ambient Temp.

104 Degrees F

CFM @ 0.125-In. SP

2676

Max. Depth

16 3/4 in

CFM @ 0.250-In. SP

2220

Sones @ 0.000-In. SP @ 5 Ft.

Exhaust/Supply Fan Motor HP

1/4 hp

Square Opening Required

25 in

Fan Voltage

115V AC

Wire Guard Finish

Gray Polyester

Product Description

Dayton utility exhaust fans are designed for general purpose exhaust applications and may be used in stores, offices, factories, shops, farm buildings, greenhouses, etc. The efficient, easy-to-install exhaust fans come with automatic shutters. Shutter flanges have eight pre-punched 1/4 x 1/2” slotted mounting holes for ease of installation. To resist corrosion, fan guards have a charcoal metallic finish. Wire guards comply with OSHA Federal 1/2” max. opening requirement, and the fan is shipped completely assembled.

Expertly Selected Product Pairings

$68.05 pkg | $68.05 ea

Item: 912162-9 | Pkg Qty: 1

Ventilation Control

Select

$97.21 pkg | $97.21 ea

Item: 915095-8 | Pkg Qty: 1

Line V Mechanical Tstat,120 To

Select

$56.00 pkg | $56.00 ea

Item: 919487-7 | Pkg Qty: 1

Line Volt Mechanical Tstat,120

Select

$111.72 pkg | $111.72 ea

Item: 935041-7 | Pkg Qty: 1

Line Volt Mechanical Tstat,120

Select

Item Barcode

Exhaust Fan,24 In,115 V,Single

Cross References
Legal

Name	Item	Description
Grainger Dropship	1HLB2	Exhaust Fan, 24 In,115 V,
UNSPSC CODES	40101502
VMRS (ATA) CODES	053-006-009	Exhaust Fan, 24 In,115 V,
