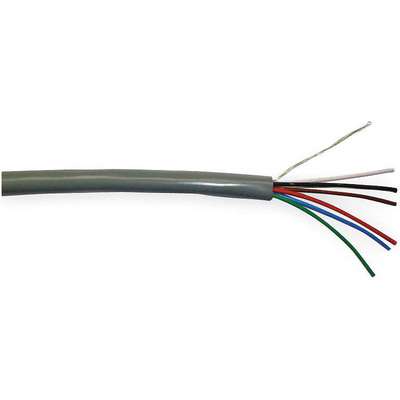

Shielded Power Limited and Communication Cable, 1000 ft. Length, Gray Jacket Color

Zoom Icon
Secondary Item Image
Secondary Product Video

#912444-7 | Pkg Qty: 1

$296.82 pkg | $296.82 ea
Item Number 912444-7
Scanner Description Wire,Shielded,Riser,22/6,1000
Inventory Status Drop Ship Item
Weight 23.6 lb
Brand CAROL

Technical Specifications

Application
Power-limited Control Circuits, Intercom, Security, Audio, Background Music, Suggested Voltage Rating 300 volts
NEC Article/Type
725 CL3R; 760 FPLR; 800 CMR
Brand
CAROL
Nominal Outside Diameter
0.173 in.
Cable Sub-Category
Multi-Conductor
Number of Conductors
6
Cable Type
Shielded, Riser
Pack Quantity
1
Color Family
Gray
Package Type - Data Cable
Pulling Pack
Communication Cable Application
Alarm Systems, Audio Systems, Control Systems
Plenum / Riser Rated
Riser Rated
Conductor Color Code Table Number
5
Shielded
Yes
Conductor Size
22 AWG
Shielded/Unshielded
Shielded
Conductor Size (AWG)
22
Shielding
Flexfoil Shield
Conductor Size - Data Cable
22 AWG
Shielding Material
Foil
Conductor Type
Stranded
Solid / Stranded
Stranded
Fire Rating - Data Cable
Riser
Spool Length
1000 ft.
Insulation
Premium Grade S-R PVC
Spool/Coil Length
1000 ft.
Insulation Material
Premium Grade S-R PVC
Standards
RoHS Compliant Directive 2002/95/EC
Item
Power Limited and Communication Cable
Stranding
7/30
Item - Data Cable
Power Limited and Communication Cable
Temp. Range
-4° to 167°F
Jacket Color
Gray
Total Number of Conductors - Data Cable
6 (0 Pair)
Jacket Color Family
Gray
Vertical Tray Flame Test
California State Fire Marshall Approved
Jacket Material
PVC
Voltage (V)
300
Length
1000 ft.
Wire Size
22 AWG
Mfg Part Number
E2006S.30.10
Wire/Cable Jacket Material
PVC
NEC Article
725 Type CL3R, 800 Type CMR
Wire/Cable Size
22 AWG

Product Description

This multi-conductor 20 AWG communication cable is ideal for fire alarm, security system or intercom installation.

Item Barcode
9124447
  Name Item Description
Grainger Dropship Grainger Dropship 4DPK3 Wire, Shielded,
UNSPSC CODES UNSPSC CODES 26121524
VMRS (ATA) CODES VMRS (ATA) CODES 053-007-002 Wire, Shielded,

For more product information by email, click here
