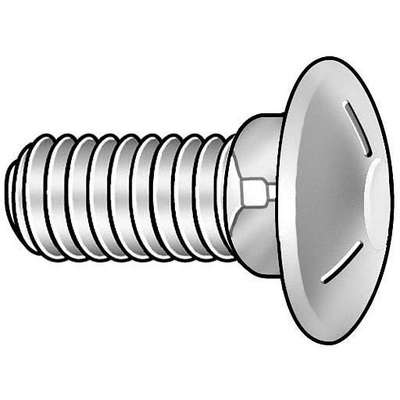

Carriage Bolt: Square, Steel, Grade 2, Zinc Plated, 3/8"-16 Thread Size, 2 1/4 in lg, Inch, 50 PK

Hover over image to magnify
Carriage Bolt,3/8-16x2 1/4 L,
Carriage Bolt,3/8-16x2 1/4 L,

#912431 | Pkg Qty: 50

$16.63 pkg | $0.33 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Basic Material
Steel
Height
0.188 in.
Brand
APPROVED SUPPLIER
Item
Carriage Bolt
Carriage Bolt Material Grade/Class
Grade A
Length Under Head
2-1/4 in.
Carriage Bolt Square Height
0.188 in.
Material
Low Carbon Steel
Carriage Bolt Square Width
0.368 in.
Meets/Exceeds
ASME B18.5
Carriage Bolt Steel Strength
Low-Strength Steel
Mfr. Part Number
U08305.037.0225
Carriage Bolt Thread Style
Partially Threaded
Neck Type
Square Neck
Drill Size
25/64 in.
Pack Quantity
50
Fastener Head Diameter
0.782 in.
Shipping Weight
3.76 lb.
Fastener Industry Standards
ASME B18.5
System of Measurement
Fractional
Fastener Thread Direction
Right Hand
Tensile Strength
60000 psi
Finish
Zinc Plated
Thread Size
3/8"-16
Grade
2
Thread Type
Coarse
Head Type
Round Head
General
For Use With
Grade 2 Zinc Nuts
Minimum Neck Height
3/16 in
Maximum Head Height
13/64 in
Minimum Neck Width
3/8 in
Maximum Neck Height
7/32 in
Neck Height
13/64 in
Maximum Neck Width
25/64 in
Neck Width
3/8 in
Minimum Head Diameter
25/32 in
Square Height
0.188 in
Minimum Head Height
3/16 in
Tensile Strength (PSI)
60,000

Product Description

The square neck on this carriage bolt cuts into wood to prevent turning while the nut is tightened.
