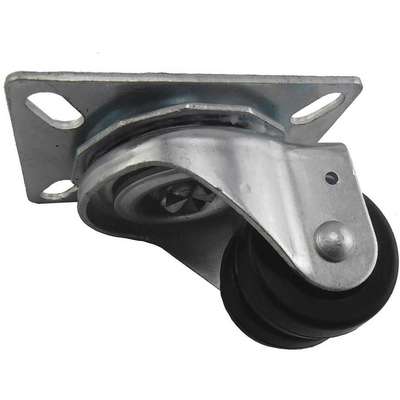

2" Light-Duty Swivel Plate Caster, 200 lb. Load Rating

Hover over image to magnify
Dual Whl Swvl Cstr,200 Lb,2 In,
PI_Asset_1355433
Dual Whl Swvl Cstr,200 Lb,2 In,
PI_Asset_1355433

#912410-7 | Pkg Qty: 1

$16.68 pkg | $16.68 ea
Item Number 912410-7
Scanner Description Dual Whl Swvl Cstr,200 Lb,2 In,
Inventory Status Drop Ship Item
Weight 1.5 lb
Brand APPROVED SUPPLIER

Technical Specifications

Brand
APPROVED SUPPLIER
Frame Finish
Zinc Plated
Caster Brake Included
No
Inside Bolt Hole Spacing
1-3/4 in. x 3 in.
Caster Core Material
Rubber
Item
Plate Caster
Caster Group
Swivel Caster
Load Rating
200 lb.
Caster Load Rating Range
Light Duty
Mfr. Part Number
202RN02052S003G
Caster Maximum Temperature
180°F
Non-Marking
No
Caster Minimum Temperature
-40°F
Number of Wheels
2
Caster Plate Hole Pattern
A
Outside Bolt Hole Spacing
2-3/8 in. x 3-3/8 in.
Caster Plate Size
3-1/8 in. x 4-1/8 in.
Overall Height
2-15/16 in.
Caster Raceway
Double Ball
Pack Quantity
1
Caster Swivel Lock Type
No Lock Included
Plate Caster Sub-Type
Swivel
Caster Temperature Range Available
Yes
Plate Size
3-1/8 in. x 4-1/8 in.
Caster Wheel Bearings
Plain
Wheel Color
Black
Caster Wheel Shape
Standard
Wheel Color Family
Black
Caster Wheel/Tread Material
Rubber
Wheel Diameter
2 in.
Core Color
Black
Wheel Width
13/16 in.
Durometer
80 Shore D

Product Description

Low-profile easy-turn light-duty and medium-duty standard plate casters each have two wheels mounted on one axle. This reduces friction between the floor and the wheels (also known as scrubbing), which allows the casters to swivel more easily than plate casters with a single wheel. Low-profile casters keep the equipment close to the ground to maximize the equipment's stability while rolling. These casters are used on carts, business machines, store fixtures, and other equipment that will be moved manually at moderate speeds. They are suitable for transporting loads along smooth, flat surfaces in areas where the casters won't encounter shock loading. These light-duty and medium-duty plate casters have steel frames with a zinc-plated or polished brass finish. Medium-duty casters can bear more weight and withstand more industrial conditions than light-duty casters.

Standard plate casters have kingpins that securely join the casters' mounting plates to their frames. They are used in nearly every industry and are the most common type of caster used for general purpose applications. The casters' mounting plates install onto the bottom of machinery, carts, or other equipment, and the casters allow the equipment to roll to reduce effort when moving or repositioning it. These casters are available in swivel and rigid versions. The swivel casters can rotate 360°, allowing equipment to change directions while rolling. The rigid casters roll in a straight line. Two rigid plate casters will often be paired with two swivel casters to allow the equipment to both maneuver around curves and obstacles and maintain a straight course while rolling.

Compliance & Restrictions

Prop 65 WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Item Barcode
9124107
  Name Item Description
Grainger Dropship Grainger Dropship 26Y506 Dual Whl Swvl Cstr,
UNSPSC CODES UNSPSC CODES 31162701
VMRS (ATA) CODES VMRS (ATA) CODES 053-007-003 Dual Whl Swvl Cstr,
