DAYTON

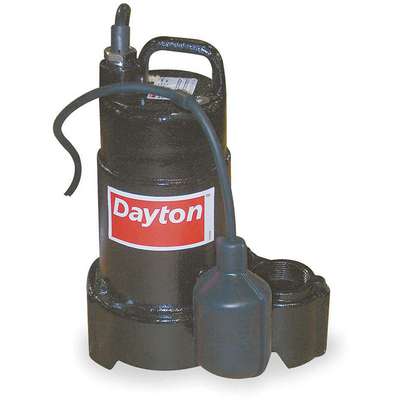

1/4 HP Submersible Sump Pump, Tether Switch Type, Cast Iron Base Material

Hover over image to magnify
Pump,Sump,1/4 Hp,120v
PI_Asset_958467
PI_Asset_958468
Pump,Sump,1/4 Hp,120v
PI_Asset_958467
PI_Asset_958468

#912391-5 | Pkg Qty: 1

$387.39 pkg | $387.39 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Agency Compliance
CSA
Maximum Diameter Solids
1/2 in.
Alarm
No
Maximum Head
21 ft.
Alarm Included
No
Maximum Liquid Temperature
104°F
Amps
3.1 A
Maximum Temperature (Deg. F)
104
Base Material
Cast Iron
Mechanical Seal
SiC
Bearing Type
Dual Ball
Mfr. Part Number
4HU67
Brand
DAYTON
Minimum Sump Pit Diameter
12 in.
Cord Length
10 ft.
Motor RPM
3450
Diameter
9-1/8 in.
Motor Type
Permanent Split Capacitor
Discharge NPT
1-1/2 in. F
NEC Cord Designation
SJTOW
Duty
Intermittent
Off Point
Variable
GPM of Water @ 10 Ft. of Head
33
On Point
Variable
GPM of Water @ 15 Ft. of Head
22
Package Quantity
1
GPM of Water @ 20 Ft. of Head
6
Pump Body Material
Cast Iron
GPM of Water @ 25 Ft. of Head
0
Pump HP
1/4
GPM of Water @ 30 Ft. of Head
0
Pump Type
Automatic
GPM of Water @ 35 Ft. of Head
0
RPM
3450
GPM of Water @ 40 Ft. of Head
0
Shaft Material
Stainless Steel
GPM of Water @ 5 Ft. of Head
42
Shaft Seal
Silicon Carbide
Gauge/Conductor
18/3
Shaft Seal Material
Carbon Ceramic
Height
11-3/4 in.
Shipping Weight
28.05 lb.
Horsepower
1/4
Sump Pump Item
Submersible Sump Pump
Housing
Cast Iron
Switch Type
Tether
Housing Material
Cast Iron
Thermal Protection
Yes
Hz
60 HZ
Top Material
Cast Iron
Impeller Material
Cast Iron
Type
Automatic
Item
Submersible Sump Pump
Voltage
120 VAC
General
Body Dia.
9 1/8 in
Min. Sump Pit Dia.
12 in
Discharge Dia.
1 1/2 in
Nominal Voltage
110 V AC
Discharge Gender
Female
Rated Voltage
120V AC
Discharge Standard
NPT
Shaft Seal Material - Pumps
Carbon Ceramic
Flow Rate @ 10 Ft. of Head
33 gpm
Standards
CSA
Flow Rate @ 15 Ft. of Head
22 gpm
Switch Actuation
Tether Float
Flow Rate @ 20 Ft. of Head
6 gpm
Switch Electrical Connection
Piggyback
Flow Rate @ 5 Ft. of Head
42 gpm

Product Description

These 110V submersible sump pumps have a cast-iron body that helps dissipate heat as the pump drains water from sump pits. They are compatible with most standard U.S. residential electrical wall outlets and have a Type A (two prongs, ungrounded) or Type B (three prongs, grounded) power cord plug. Pumps have a painted or powder-coated finish to protect the body from corrosion.
