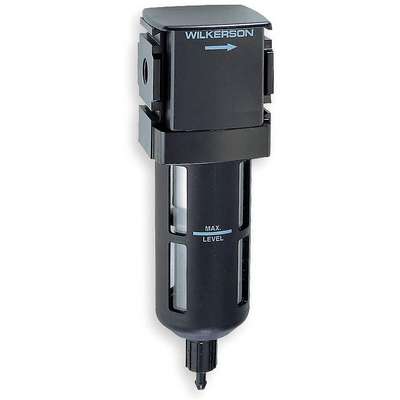

150 psi Standard General Purpose Filter

150 psi Standard General Purpose Filter

#912377-7 | Pkg Qty: 1

$91.25 pkg | $91.25 ea
Item Number 912377-7
Scanner Description Filter,Air Line,3/8 In
Inventory Status Drop Ship Item
Weight 2 lb
Brand WILKERSON

Technical Specifications

Air Consumption
scfm
Maximum Temperature (Deg. F)
125
Bowl Material
Polycarbonate with Guard
Mfr. Part Number
F28-03-SK00
Brand
WILKERSON
NPT
3/8 in.
Drain Port Size
3/8 in.
Overall Height
8.4 in.
Drain Type
Manual
Overall Width
2.9 in.
Filter Rating
5 micron
Pack Quantity
1
Item
Compressed Air Filter
Pipe Size
3/8 in. NPT
Maximum Flow
100 cfm
Product Size
Standard
Maximum Flow (CFM)
100 CFM
Type
General Purpose
Maximum Pressure
150 psi
Width
2.9 in.
Maximum Temperature
125 deg. F

Product Description

Rugged, lightweight construction with high-flow capability and excellent water removal efficiency. Has a positive bayonet bowl latch and barbed manual drain connection with pipe-away. For the Max. Flow, the CFM is based on 100 psig inlet and 5 psig pressure drop. Note: Unit should not be located in areas subject to direct sunlight, direct impact, or temperature outside rated range. Incompatible with chlorinated hydrocarbons, ketones, esters, and certain alcohols. Not for use in air systems where compressors are lubricated with fire-resistant fluids such as phosphate ester or diester. Should not be used where strong acids or bases are present or in salt-laden atmospheres.

Item Barcode
9123777
  Name Item Description
Grainger Dropship Grainger Dropship 6B284 Filter,Air Line,3/8 In
UNSPSC CODES UNSPSC CODES 40161516
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 Filter,Air Line,3/8 In
