HUBBELL WIRING DEVICE-KELLEMS

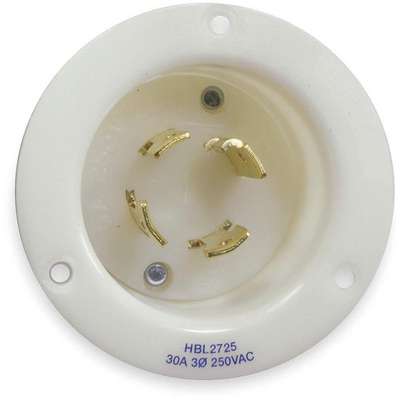

Hubbell Wiring Device-Kellems White Flanged Locking Inlet, 30 Amps, 250 VAC Voltage, NEMA Configuration: L15-30P
Hover over image to magnify
#912337-8 | Pkg Qty: 1
$91.19 pkg | $91.19 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Accessory Group
E
Material of Construction
Nylon
Amperage
30 A
Maximum Operating Temperature
75 °C
Amps
30 A
Maximum Wire Size
8 AWG
Blade Material
Brass
Mfr. Part Number
HBL2725
Boot Code
E
Minimum Operating Temperature
-40 °C
Brand
HUBBELL WIRING DEVICE-KELLEMS
Minimum Wire Size
16 AWG
Color Family
White
Mount Type
Flush
Connection Orientation
Straight
Mounting Type
Flush Mount
Current Rating
30 A
NEMA Configuration - Plugs & Connectors
L15-30
Face Diameter
2.23 in.
NEMA Enclosure Rating
12, 4X
Face Plate Width
0.09 in.
NEMA Plug Configuration
L15-30P
Features
Accepts Slotted, Phillips, and Robertson Head Drivers
NEMA Rating
12, 4X
Flange Diameter
3.06 in.
Number of Blades
4
Flange Material
Nylon
Number of Poles
3
Flange Type
Flanged
Number of Wires
4
For Environment
Dry
Overall Depth
2.27 in.
For Location
Indoor
Package Quantity
1
Grade
General Use
Phase
Three
Grounding
Grounded
Shipping Weight
.27 lb.
HP
3 HP
Shrouded
Yes
Horsepower
3 hp
Special Features
With Cover
Housing Color
White
Standards
CSA C22.2 No. 42, Federal Specification W-C-596, UL 498
Housing Material
Nylon
Subcategory
Inlets
IP Rating
IP20
UL 94 Flammability Rating
HB
Includes
Mounting Screws
Voltage
250V AC
Includes Mounting Hardware
Yes
Voltage Rating
250V AC
Item
Flanged Locking Inlet
Wire Connection Type
Screw Terminals
Material
Nylon
Wiring Style
Standard
General
HP
3.0
Special Features
With Cover
Product Description
NEMA Twist-Lock® Devices
- Premium-quality industrial wiring devices feature a powerful cord grip, 1-pc. dust shield, tough nylon housing, visible identification, and roomy wiring chamber.
Expertly Selected Product Pairings
Item Barcode
Inlet,Flanged,30 A,L15-30
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 3D092 | Inlet, Flanged,30 A, |
 | UNSPSC CODES | 39121406 | |
 | VMRS (ATA) CODES | 053-007-002 | Inlet, Flanged,30 A, |
