BULLDOG

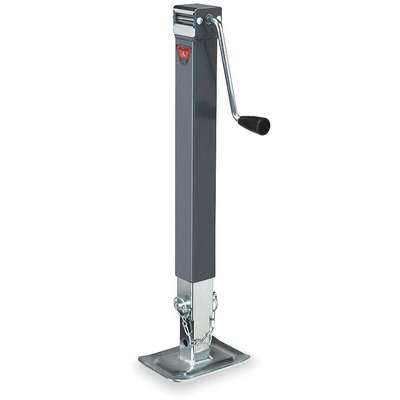

Trailer Square Jack, 8000 lb. Load Capacity, 28.5" Lift Range, Sidewind, Direct Weld

Hover over image to magnify
Square Jack,8000 Lb
Square Jack,8000 Lb

#912231-4 | Pkg Qty: 1

$179.13 pkg | $179.13 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Base
Detachable Footplate
Lifting Capacity
5000 lb.
Brand
BULLDOG
Load Capacity
8000 lb.
Construction
Steel
Maximum Lifting Height
48-13/64 in.
Diameter
2-1/2 in.
Mfr. Part Number
190754
Finish
Zinc Plated
Overall Height
53.6 in.
Handle
Sidewind
Package Quantity
1
Item
Trailer Square Jack
Retracted Length
25.1 in.
Lift Range
28.5 in.
Shipping Weight
26.7 lb.
General
Adjustment Range
28 1/2 in
Max. Lift Height
4 ft 13/64 in
Extended Length
53 9/16 in
Maximum Lift Height
4 ft 3/16 in
Features
Compact
Maximum Lifting Capacity
5,000 lb
Gear Travel
15 in
Minimum Lift Height
3 ft 4 in
Includes
1/4 in Cross Pin
Standards
ASABE S485
Jack Type
Sidewind Trailer Jack

Product Description

BULLDOG® Sidewind Trailer Square Jack has a compact design that makes it ideal for tight-fitting applications where 3" and 4" square tube jacks are too big. The outer/inner tube overlap provides optimal side load performance, while a proprietary screw nut stop design prevents screw and/or nut damage when the jack is fully extended. Features quality steel antifriction thrust bearings and rolled threads.

  • 1:1.33 gear ratio
