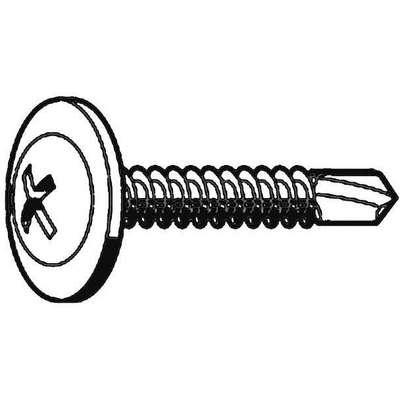

1/2" Case Hardened Steel Self Drilling Screw with K-Lath Head Type and Zinc-Plated Finish
#912206-9 | Pkg Qty: 200
$9.56 pkg
| $0.05 ea
| Item Number | 912206-9 |
| Scanner Description | Self Drill Scr,8-18x1/2 L,PK100 |
| Inventory Status | Drop Ship Item |
| Weight | 0.82 lb |
| Brand | APPROVED SUPPLIER |
Technical Specifications
Application
For Attaching Variety of Materials to Stud Framing
Item
Self Drilling Screw
Basic Material
Steel
Length Under Head
1/2 in.
Brand
APPROVED SUPPLIER
Material
Case Hardened Steel
Drill Point Length
0.137 in.
Meets/Exceeds
SAE J78
Drill Point Size
#2
Mfr. Part Number
U29580.016.0050
Drive Type
Phillips
Pack Quantity
200
Driver Size
#2
Self Drilling Screw Head Type
K-Lath Head
Finish
Zinc Plated
System of Measurement
Fractional
Head Color
Standard
Thread Size
#8-18
Head Diameter
0.38 in.
Type
Self Drilling
Head Height
0.113 in.
Washer Outside Diameter
0.38 in.
Product Description
Self-Drilling Sheet Metal Screws
- Package quantities are exact Meet SAE J78 standard
- 1-pc., 1-side-installation fasteners drill their own holes and form their own internal mating threads. Climacoat finish prevents rust from bleeding into substrate. Climaseal® corrosion-resistant finish provides excellent resistance to most forms of abrasion and torque. Gray Spex corrosion-resistant finish on No. 36K145 is an organic waterborne coating, applied with a state-of-the-art process that eliminates Phillips recess fill problems.
- Sheet Metal Screws
- All meet ANSI/ASME B18.6.4 standard. 18-8 Stainless Steel screws also meet SAE J933 standards; RoHS compliant.
- Note: Pan head square drive and 82° flat head torx plus drive are also available, search for "sheet metal pan head screws" or "sheet metal flat head screws."
Item Barcode
| Name | Item | Description | |
|---|---|---|---|
|
Grainger Dropship | 4HJX1 | Self Drill Scr,8-18x1/2 |
|
UNSPSC CODES | 31161507 | |
|
VMRS (ATA) CODES | 053-007-006 | Self Drill Scr,8-18x1/2 |
