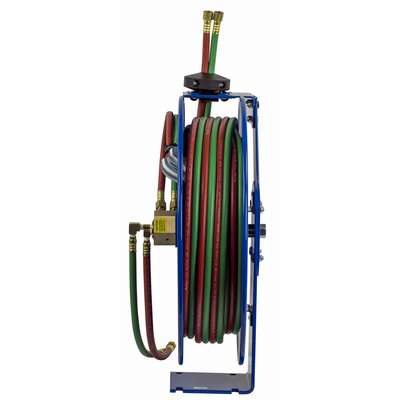

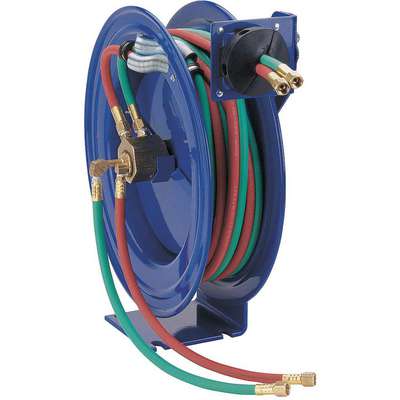

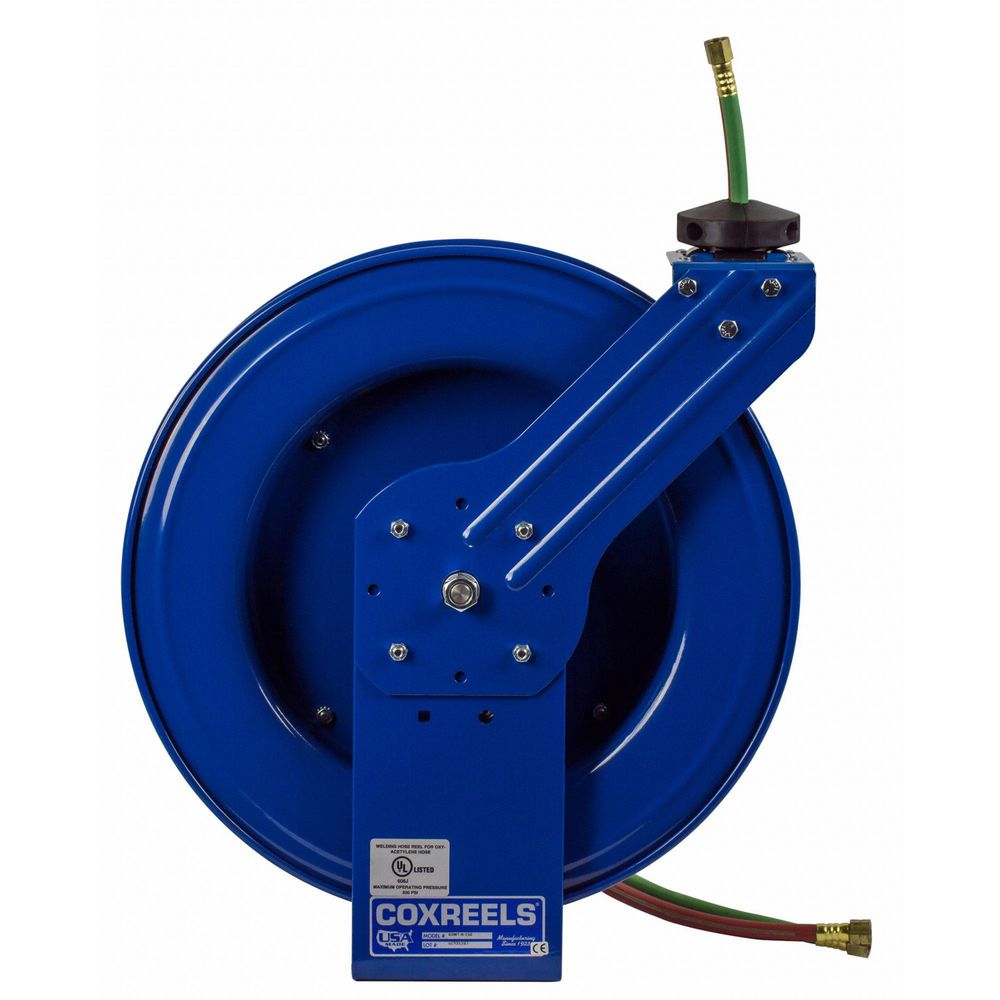

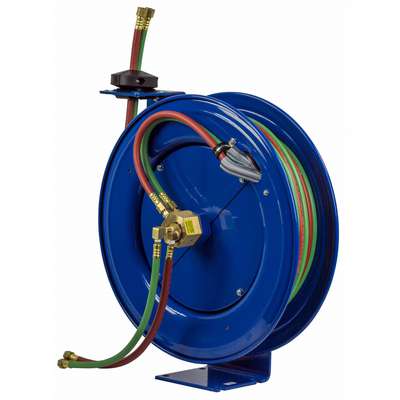

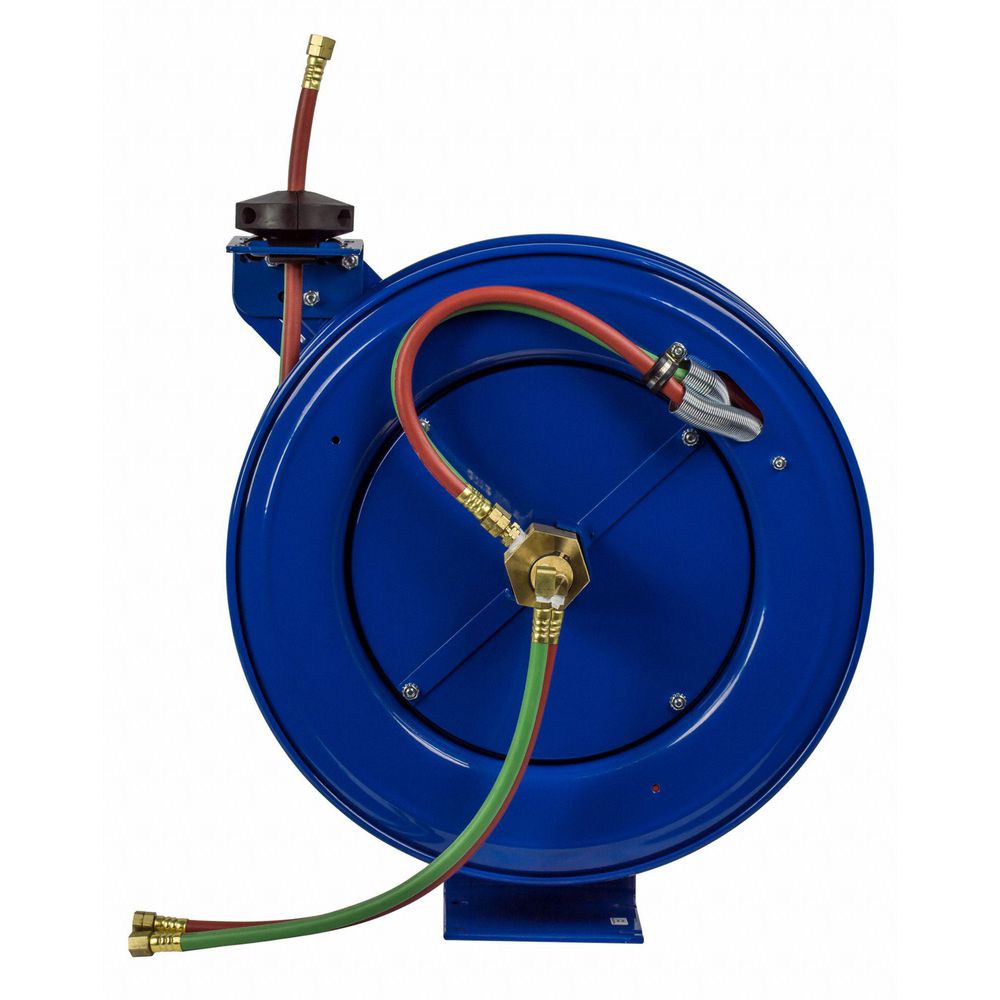

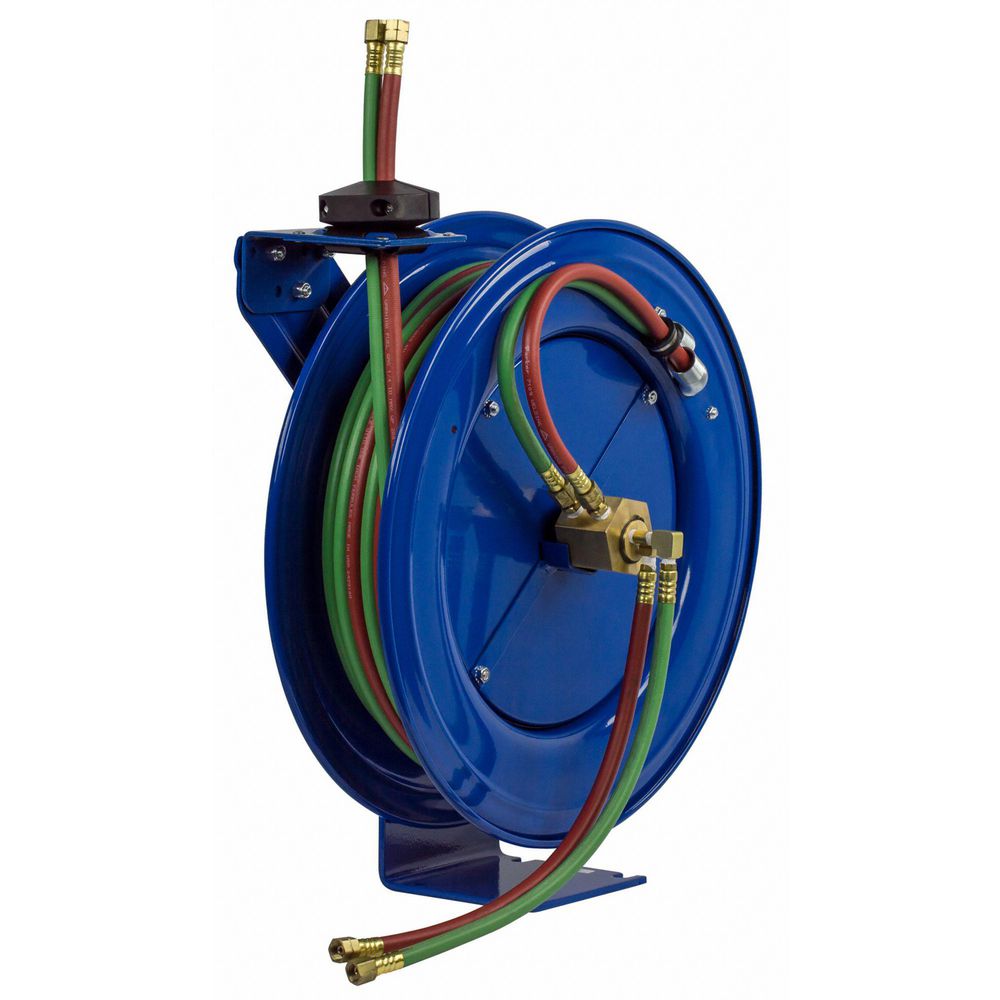

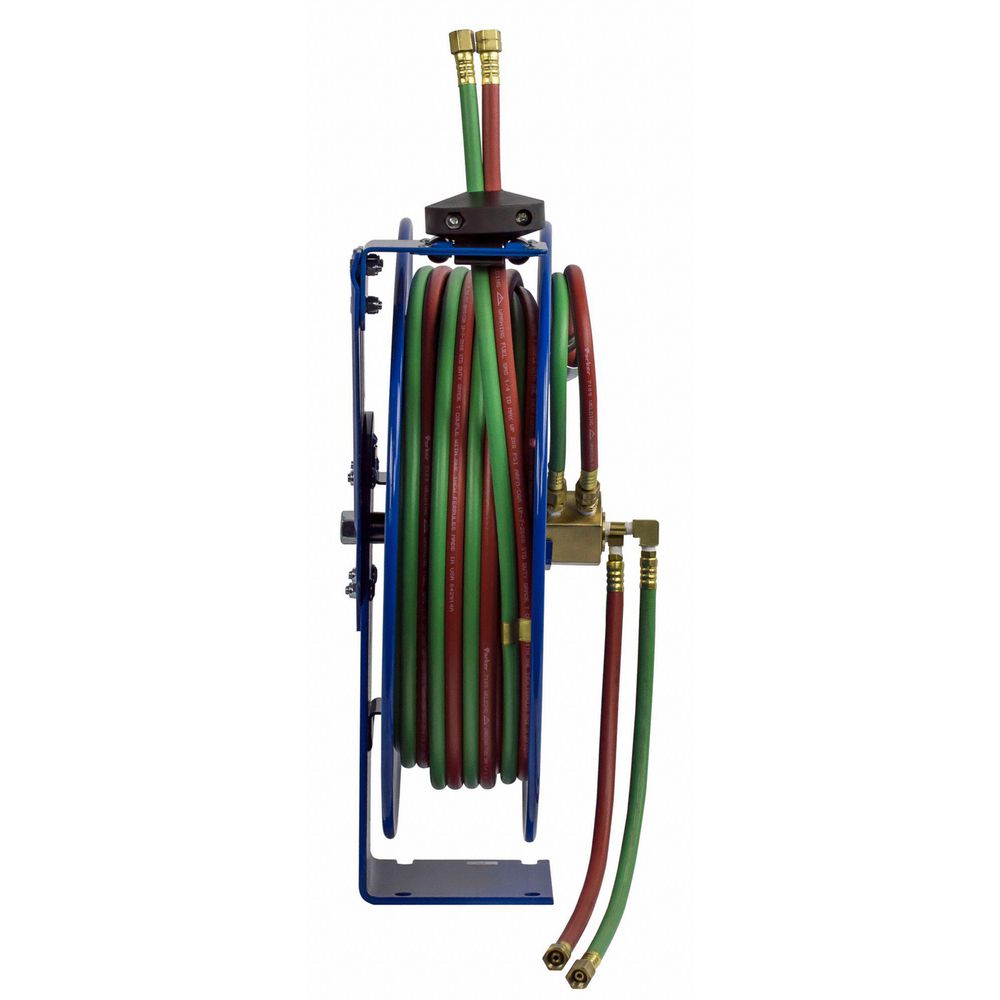

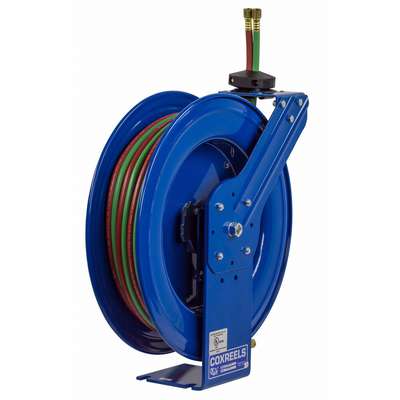

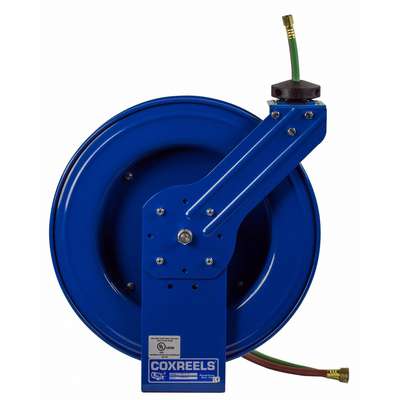

Coxreels 23" x 10-7/8" x 25-1/4 Gas Welding Hose Reel; For Oxy-Acetylene

Hover over image to magnify
Welding Hose Reel,1/4x100
PI_Asset_971014
PI_Asset_971015
PI_Asset_971016
PI_Asset_971017
PI_Asset_971018
PI_Asset_971019
PI_Asset_971020
Welding Hose Reel,1/4x100
PI_Asset_971014
PI_Asset_971015
PI_Asset_971016
PI_Asset_971017
PI_Asset_971018
PI_Asset_971019
PI_Asset_971020
Coxreels 23" x 10-7/8" x 25-1/4 Gas Welding Hose Reel; For Oxy-Acetylene Video
Coxreels 23" x 10-7/8" x 25-1/4 Gas Welding Hose Reel; For Oxy-Acetylene Video
Coxreels 23" x 10-7/8" x 25-1/4 Gas Welding Hose Reel; For Oxy-Acetylene Video
Coxreels 23" x 10-7/8" x 25-1/4 Gas Welding Hose Reel; For Oxy-Acetylene Video
Coxreels 23" x 10-7/8" x 25-1/4 Gas Welding Hose Reel; For Oxy-Acetylene Video
Coxreels 23" x 10-7/8" x 25-1/4 Gas Welding Hose Reel; For Oxy-Acetylene Video
Coxreels 23" x 10-7/8" x 25-1/4 Gas Welding Hose Reel; For Oxy-Acetylene Video

#912175-3 | Pkg Qty: 1

$952.15 pkg | $952.15 ea
Pricing is subject to change without notice

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
(F)NPT Reel Inlet
1/4 in.
Mfr. Part Number
SHW-N-1100
Bearings
Permanently Lubricated
Mounting
Bench or Truck, Ceiling, Floor, Wall
Brand
COXREELS
Overall Height
25-1/2 in.
Drive Type
Spring Return
Overall Length
24 in.
Hose Included
Yes
Overall Width
10-1/4 in.
Hose Inside Diameter
1/4 in.
Package Quantity
1
Hose Length
100 ft.
Seal Type
Viton
Item
Gas Welding Hose Reel
Shipping Weight
88.95 lb.
Latch
Locking
Thread
9/16 in. - 18 UNF
Maximum Pressure
200 psi
Type
Welding Gas, With Hose
Maximum Temperature
150 deg. F
Welding Hose Grade
T
Meets/Exceeds
R.M.A. and C.G.A. Type V.D. Specifications
General
Base Motion Type
Stationary
Hose 2 Length
100 ft
Bearing Construction
Permanently Lubricated
Hose End Configuration
1/4 in MNPT x 9/16 in F UNF, 9/16 in F UNF x 9/16 in F UNF
Combination Type
Oxygen/Acetylene
Hose Grade
T
Fitting Gender
Female x Female, Male x Female
Hose Outlet
1/4 in
For Dual Hose
Yes
Hose Reel Primary Application
Welding
For Use With
Oxy-Acetylene
Hose Reel Type
Wall Mount Hose Reel
Grade
R
Include Hose Stop
Yes
Hose 1 Cover Material
EPDM
Includes
(2) Hose, (2) Hose Guard, (2) Hose Stop
Hose 1 Fitting A Gender
Female
Includes Leader Hose
Yes
Hose 1 Fitting A Material
Brass
Leader Hose Cover Material
EPDM
Hose 1 Fitting A Size
9/16 in
Leader Hose Fitting A Gender
Female
Hose 1 Fitting A Type
UNF
Leader Hose Fitting A Material
Brass
Hose 1 Fitting B Gender
Female
Leader Hose Fitting A Size
9/16 in
Hose 1 Fitting B Material
Brass
Leader Hose Fitting A Type
UNF
Hose 1 Fitting B Size
9/16 in
Leader Hose Fitting B Gender
Female
Hose 1 Fitting B Type
UNF
Leader Hose Fitting B Material
Brass
Hose 1 Inside Diameter
1/4 in
Leader Hose Fitting B Size
9/16 in
Hose 1 Length
100 ft
Leader Hose Fitting B Type
UNF
Hose 1 Tube Material
EPDM
Leader Hose Length
1 1/2 ft
Hose 2 Cover Material
EPDM
Leader Hose Tube Material
EPDM
Hose 2 Fitting A Gender
Male
Maximum Operating Pressure
200 psi
Hose 2 Fitting A Material
Brass
Minimum Operating Pressure
0 psi
Hose 2 Fitting A Size
1/4 in
Mount Base Height
6 in
Hose 2 Fitting A Type
NPT
Mount Base Width
6 in
Hose 2 Fitting B Gender
Female
Mount Hole Diameter
1/2 in
Hose 2 Fitting B Material
Brass
Mounting Hole Center to Center Height
4 in
Hose 2 Fitting B Size
9/16 in
Mounting Hole Center to Center Width
5 in
Hose 2 Fitting B Type
UNF
Reel Finish
Powder Coated
Hose 2 Inside Diameter
1/4 in

Product Description

Standard welding spring-return hose reels have an independent dual-swivel design that allows a positive separation of gases with double sealed O-rings to prevent leaks. The dual-swivels are made from aluminum that's hard-coated for wear resistance, and the swivel body and inlet are permanently identified with machined grooves on the gas side to assure proper installation. Reinforced steel construction includes powder-coated finish for corrosion resistance. These low-pressure (up to 500 psi) reels mount on the floor, wall, ceiling, bench, or on trucks, and include an adjustable guide arm. Reels use Grade R (oxygen and acetylene gas) or Grade T (oxygen and fuels) hoses. Welding spring-return reels are used with oxygen and acetylene welding hoses in service bays, fabrication shops, and on welding carts.
