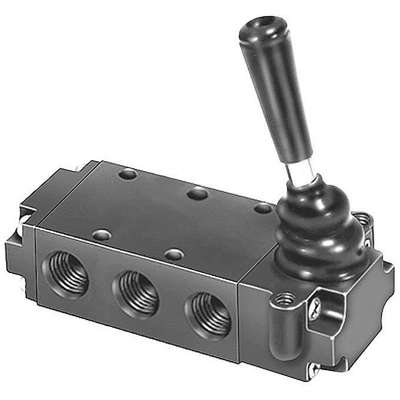

1/4" Manual Air Control Valve with 4-Way, 2-Position Air Valve Type

1/4" Manual Air Control Valve with 4-Way, 2-Position Air Valve Type

#912034 | Pkg Qty: 1

$180.81 pkg | $180.81 ea
Item Number 912034
Scanner Description Manual Valve,Lever,1/4 NPT,4
Inventory Status Drop Ship Item
Weight 0.8 lb
Brand PARKER

Technical Specifications

Actuator/Return
Lever/Manual
Overall Length
4-1/4 in.
Air Consumption
scfm
Overall Width
1 in.
Body
Aluminum
Pack Quantity
1
Body Material
Aluminum
Pipe Size
1/4 in.
Brand
PARKER
Port Size
1/4 NPT
Coefficient of Volume
0.8
Series
Directair 4
Connection
NPT
Type
Lever
Cv
0.83
Valve Actuator/Return
Lever / Manual
For Use With
General Pneumatic Applications
Valve Maximum Pressure Rating
150 psi
Item
Manual Air Control Valve
Valve Port Size
1/4 in.
Maximum CFM
0.83
Valve Temperature Range
32° to 175°F
Maximum Pressure
150 psi
Valve Ways/Positions
4-Way/2-Position
Mfr. Part Number
520831000
Warranty
2ACC6
Number of Positions
2
Width
1.06 in.
Overall Height
1-1/2 in.

Product Description

Parker® Directair 4 manual air control valve features fluorocarbon seals and a stainless steel spool for greater chemical compatibility and the ability to withstand higher temperatures. Model is pre-lubricated and requires clean, lubricated air for long service life.
