WILKERSON

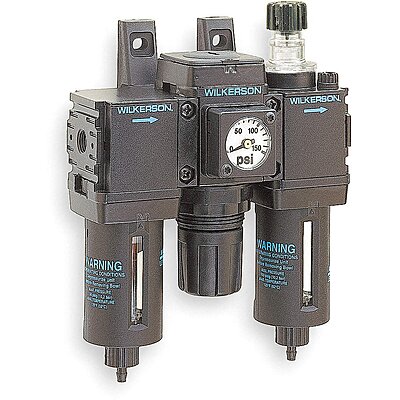

1/4" NPT Filter/Regulator/Lubricator with 0 to 125 psi Adjustment Range
#911466-6 | Pkg Qty: 1
Alternate products displayed may not be identical in style or function to original selection.
Alternate Products
Technical Specifications
Key Specifications
Adjustment
0 to 125 psi
Mfr. Part Number
C08-02-FKG0
Air Consumption
scfm
NPT
1/4 in.
Bowl Material
Polycarbonate with Guard
Number of Pieces
3
Brand
WILKERSON
Overall Height
6 in.
Drain Type
Manual
Overall Width
4.72 in.
Filter Rating
5 micron
Pack Quantity
1
Item
Filter/Regulator/Lubricator
Pipe Size
1/4 in. NPT
Maximum Flow
44 cfm
Series
8
Maximum Flow (CFM)
44 CFM
Shipping Weight
1.95 lb.
Maximum Pressure
150 psi
Type
3 Piece Modular Combination
Maximum Temperature
125 deg. F
Width
4.72 in.
Maximum Temperature (Deg. F)
125
General
Adjustment Mechanism
Knob
For Substance Type
Air
Adjustment Mechanism Material
Acetal
Gauge Port Size
1/8 in NPT
Adjustment Range
0 to 125 psi
Lubricator Bowl Capacity
0.6 oz
Adjustment Range - Air Treatment
0 to 125 psi
Lubricator Bowl Guard Included
Yes
Air Inlet Type
NPT
Lubricator Bowl Guard Material
Nylon
Air Outlet Size
1/4 in
Lubricator Bowl Material
Polycarbonate
Air Outlet Type
NPT
Max. Flow - Air Treatment
44 cfm
Bowl Material - Air Treatment
Polycarbonate with Guard
Max. Flow Range - Air Treatment
41 to 50 cfm
Bowl Size - Air Treatment
0.6 oz
Max. Incoming Pressure - Air Treatment
150 psi
Connection Size - Air Treatment
1/4 in NPT
Maximum Regulated Pressure
125 psi
Filter Bowl Capacity
0.6 oz
Minimum Regulated Pressure
0 psi
Filter Bowl Guard Included
Yes
Modular Connection
Modular Connection
Filter Bowl Guard Material
Nylon
Pressure Gauge Included
Yes
Filter Bowl Material
Polycarbonate
Pressure Gauge Port Size
1/8 in
Filter Element Material
Polyethylene
Pressure Gauge Port Type
NPT
Filter Rating - Air Treatment
5 micron
Sight Dome Included
Yes
For Fluid Type
Oil
Product Description
The 3-pc. design integrates filter, regulator, and lubricator into a single unit. Ready-to-mount assembly comes with a pressure gauge and modulator T-bracket/joiner assembly. For the Max. Flow, the CFM is measured with 100 psig inlet adjusted to a set pressure of 90 psig and a 15 psig pressure drop.
