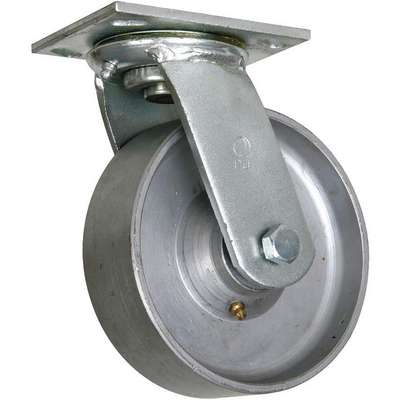

Standard Plate Caster, Swivel, Iron, 1200 lb., 6" Wheel Dia.

Hover over image to magnify
Swivel Caster, 6IN, 1200LB
PI_Asset_1355391
PI_Asset_1355395
Swivel Caster, 6IN, 1200LB
PI_Asset_1355391
PI_Asset_1355395

#911368-4 | Pkg Qty: 1

$48.38 pkg | $48.38 ea
Item Number 911368-4
Scanner Description Swivel Caster, 6IN, 1200LB
Inventory Status Drop Ship Item
Weight 8.31 lb
Brand APPROVED SUPPLIER

Technical Specifications

Brand
APPROVED SUPPLIER
Load Rating
1200 lb.
Caster Brake Included
No
Mfr. Part Number
1NWL6
Caster Brake Type
No Brake Included
Mounting Bolt Diameter
3/8 in.
Caster Core Material
Cast Iron
Mounting Height
7-1/4 in.
Caster Load Rating Range
Medium Duty
Non-Marking
Yes
Caster Plate Hole Pattern
B
Number of Mounting Holes
4
Caster Plate Size
4 in. x 4-1/2 in.
Number of Wheels
1
Caster Raceway
Double Ball
Outside Bolt Hole Spacing
2-5/8 in. x 3-5/8 in.
Caster Swivel Lock Type
No Lock Included
Pack Quantity
1
Caster Wheel Bearings
Roller
Plate Caster Sub-Type
Swivel
Caster Wheel Shape
Standard
Shipping Weight
8.31 lb.
Caster Wheel/Tread Material
Iron
Standards
ICWM
Core Color
Gray
Swivel Construction
Kingpin
Frame Finish
Zinc Plated
Wheel Color
Gray
Frame Material
Steel
Wheel Diameter
6 in.
Includes
Spanner Bushing
Wheel Width
2 in.
Inside Bolt Hole Spacing
3 in. x 3 in.
Wheel/Tread Hardness Rating
Extra Hard
Item
Standard Plate Caster

Product Description

Medium-duty standard plate casters mount to the bottom of carts, dollies, platform trucks, tool boxes, storage racks, and other industrial equipment that will be moved manually at moderate speeds. They are suitable for transporting loads along smooth, flat surfaces in areas where the casters won't encounter shock loading, such as shops, docks, warehouses, waste-disposal areas, manufacturing plants, and other industrial settings. These casters have zinc-plated steel frames. Swivel versions of these casters have double ball swivel bearings, which are quieter and allow the caster to swivel more smoothly than roller bearings.

Standard plate casters have kingpins that securely join the casters' mounting plates to their frames. They are used in nearly every industry and are the most common type of caster used for general purpose applications. The casters' mounting plates install onto the bottom of machinery, carts, or other equipment, and the casters allow the equipment to roll to reduce effort when moving or repositioning it. These casters are available in swivel and rigid versions. The swivel casters can rotate 360°, allowing equipment to change directions while rolling. The rigid casters roll in a straight line. Two rigid plate casters will often be paired with two swivel casters to allow the equipment to both maneuver around curves and obstacles and maintain a straight course while rolling.
